Recovered from the Wreckage: Air India Black Box Withstands 1000°C

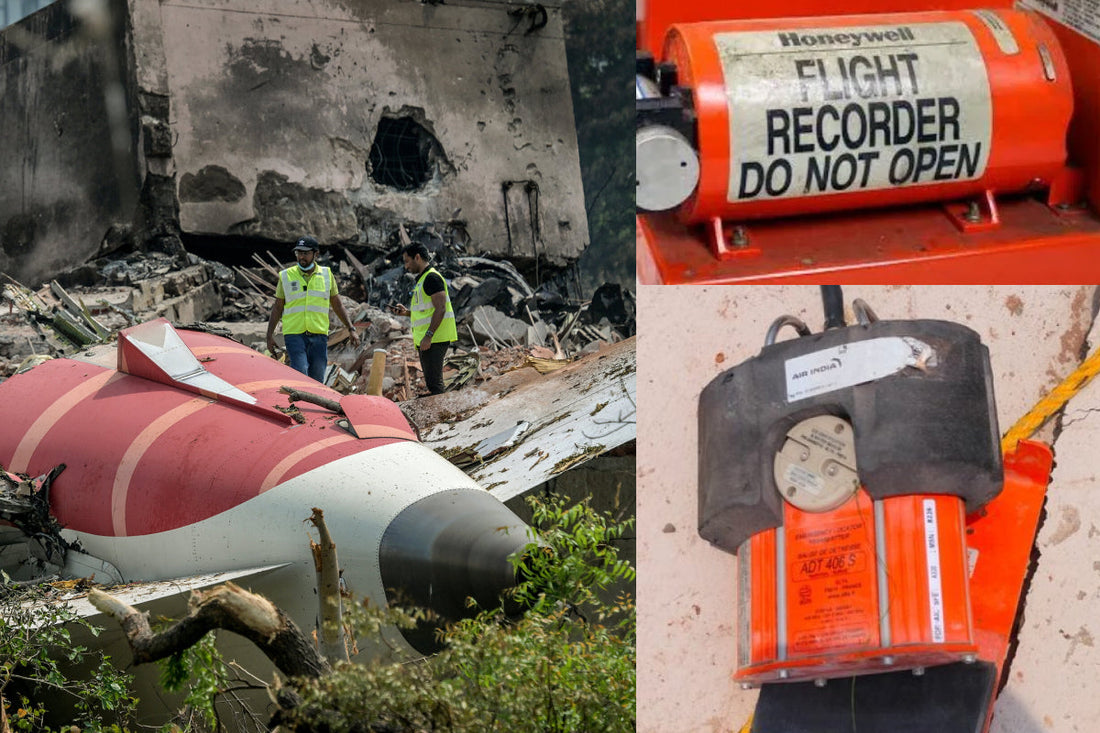

When Air India’s tragic crash made global headlines in June 2025, aviation experts and the public alike awaited the recovery of a key piece of evidence: the aircraft's black box and digital video recorder (DVR). These devices are instrumental in unraveling the mystery behind any crash. Remarkably, despite the aircraft being engulfed in flames that reached temperatures up to 1,000°C, both the black box and DVR were successfully recovered—intact and functioning. How is this possible?

This blog explores the sophisticated engineering, materials science, and extreme testing that allow these devices to survive catastrophes that reduce aircraft fuselages to molten metal.

What are the Black Box and Digital Video Recorder?

Modern commercial aircraft are equipped with two main crash-survivable data recording systems:

1. Flight Data Recorder (FDR) – Records key flight parameters such as airspeed, altitude, heading, and engine performance.

2. Cockpit Voice Recorder (CVR) – Captures all cockpit audio including crew conversations, alarms, and radio communications.

3. Digital Video Recorder (DVR) – A newer addition on some aircraft, DVRs record cockpit or cabin video feeds, especially in modern fleets with advanced avionics and security monitoring.

Collectively, these are sometimes referred to as the "black box," even though they are painted bright orange for visibility.

How Did They Survive a 1000°C Inferno?

The survival of these devices is not a miracle, but a testament to cutting-edge engineering:

1. Crash-Survivable Memory Unit (CSMU)

At the heart of both the FDR and DVR is the CSMU—a robust data capsule designed to resist:

 • Extreme Heat: Up to 1,100°C for 60 minutes

 • Impact Forces: Up to 3,400 times the force of gravity (3,400 G)

 • Pressure: Equivalent to deep-sea depths of 20,000 feet

 • Crushing Loads: Static pressure of 5,000 psi

2. Thermal Protection System

The CSMU is encased in multiple layers:

 • Titanium or Stainless Steel Shell: Offers mechanical protection.

 • Thermal Insulation Layer: Often made from silica-based materials, which insulate the data capsule from external heat.

 • Phase Change Materials (in some units): These absorb heat by changing from solid to liquid, helping to buffer the internal temperature.

3. Intelligent Design

 • Recessed Connectors & Reinforced Seals: Prevent melting or entry of hot gases or liquids.

 • Heat-Resistant Electronics: All internal circuits are tested to function even after brief exposure to high temperatures.

These features allow the black box and DVR to withstand intense fires and physical impacts that occur during an aircraft crash.

How Are These Devices Tested?

To ensure survivability, every certified black box and DVR undergoes rigorous crash-survivability testing under international aviation safety standards (like ED-112A):

 • Fire Test: Direct exposure to 1,100°C flames for one hour.

 • Impact Shock Test: Simulated crashes by launching units into a metal wall at 340 knots.

 • Crush Test: Application of 5,000 lbs/in² of pressure.

 • Water Immersion Test: Submersion in saltwater for 30 days.

 • Penetration Test: Piercing with a heavy steel rod to simulate debris penetration.

These tests simulate worst-case scenarios so that, even when an aircraft is destroyed, the data recorders survive.

Why Is Recovery So Crucial?

In the case of Air India’s crash, recovering the FDR, CVR, and DVR is crucial for several reasons:

 • Determine the Cause: Analyze last-minute actions by the flight crew and any mechanical failures.

 • Verify Procedures: Understand whether correct emergency procedures were followed.

 • Policy & Safety Improvements: Feed into design changes and regulatory updates for global aviation safety.

 • Passenger & Family Closure: Provide concrete answers to families and authorities.

Role of the Digital Video Recorder (DVR)

The recovery of the DVR marks a leap in modern investigative capabilities. While CVRs offer audio, DVRs give visual confirmation of pilot actions, cockpit displays, and even passenger behavior in the cabin if installed. This added layer of data provides unparalleled insight during accident reconstruction.

Conclusion :

The survival of Air India’s black box and digital video recorder is not just a triumph of resilience—it’s a celebration of the incredible engineering designed to protect truth itself. Built to withstand infernos, sea depths, and crash forces, these devices are the silent witnesses that help investigators solve aviation's most harrowing mysteries.

In the face of tragedy, they serve one crucial purpose: to ensure we learn, adapt, and fly safer every day.
