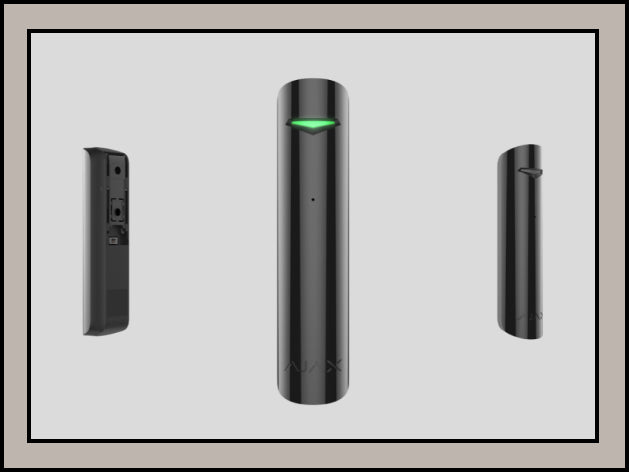

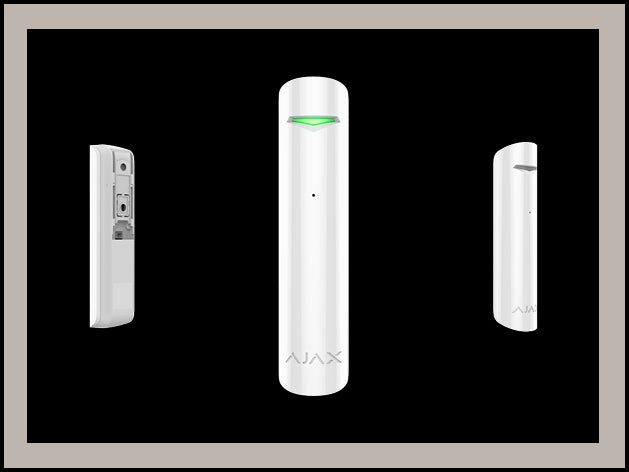

Ajax Glass Protect (8IN) – Advanced Wireless Glass Break Detector
The Ajax Glass Protect (8IN) is a wireless glass break detector that uses a high-sensitivity electret microphone to recognize the specific sound pattern of breaking glass. Designed for indoor use, it reliably detects glass break events from up to 9 meters away with a wide 180° detection angle, making it ideal for protecting rooms with large windows or glass surfaces. The detector quickly communicates any breach to the Ajax hub using secure wireless technology, providing fast and accurate intrusion alerts without false alarms from everyday sounds.
Specifications
| Specification Category |
Details |
| Detection Technology |
Electret microphone with Dual Tone algorithm |
| Detection Range / Angle |
Up to 9 m, 180° coverage |
| Sensitivity Levels |
Three adjustable levels (Low / Medium / High) |
| Alarm Signal Time |
~0.15 s from detection |
| Power Supply |
1 × CR123A 3V battery (pre‑installed); up to ~7 years battery life |
| Wireless Protocol |
Jeweller (868 MHz region variants) with two‑way AES‑encrypted comms |
| Comm Range |
Up to ~1,000 m open space |
| Tamper Protection |
Yes (SmartBracket switch), plus jamming and spoofing detection |
| External Input |
NC‑type wired sensor support via internal terminals |
| Operating Conditions |
Temperature −10 °C to +40 °C; humidity ≤ 75%; indoor use only |
| Dimensions & Weight |
90 × 20 × 20 mm; ~30 g |
| Color Options |
White and Black |
| Warranty |
24 months replacement/repair (excluding battery) |
| Accessory Set |
Includes Smart Bracket, pre-loaded battery, external contact cable, installation kit, guide |
Key Features
• Dual-phase detection using Dual Tone algorithm: senses impact and shatter within 1.5 s to reduce false alarms.
• Wide detection range: effective up to 9 m; 180° detection angle covers broad field if properly oriented.
• Adjustable sensitivity: three levels configurable in the Ajax app for different environments.
• Long battery life: 3 V CR123A battery pre‑installed; up to 7 years lifespan depending on settings.
• Secure wireless communication via Jeweller: two-way, AES encryption, frequency hopping, up to ~1 000 m range.
• Tamper protection: alerts if removed from mounting bracket; anti‑spoofing, jamming detection.
• External input support: includes terminals to integrate a third‑party wired NC sensor (e.g., motion, opening).
• Compact, discreet design: approx. 90 mm × 20 mm, 30 g; available in black or white.
• Easy installation: mounts on Smart Bracket, installed in seconds, provisioned via one-click in Ajax app.
Applications
• Residential: Perfect for safeguarding glass doors, large windows, and patio panels in homes—especially suited to living rooms, sunrooms, enclosed balconies.
• Commercial and Retail: Ideal for glass storefronts, display cases, office partitions, and receptions with large glazed areas.
• Professional and Public Premises: Museums, galleries, schools, restaurants and laboratories—anywhere glass break intrusion is a risk.
• Hybrid setups: Integrates well with motion detectors or opening sensors (via external input) for layered intrusion detection.
Summary
The Ajax GlassProtect (8IN) is a sleek, reliable glass‑break detector offering:
• Fast, accurate detection of break‑in attempts with minimal false alarms
• Robust wireless security and long battery life
• Flexible integration with Ajax system and external sensors
• Suitable for both residential and commercial settings with glass risk
If you want help configuring sensitivity, mounting it optimally, or integrating Glass Protect in a mixed-sensor setup, we’d be happy to assist!
