Ajax Motion Cam Outdoor (8IN)
Ajax Motion Cam Outdoor (8IN)

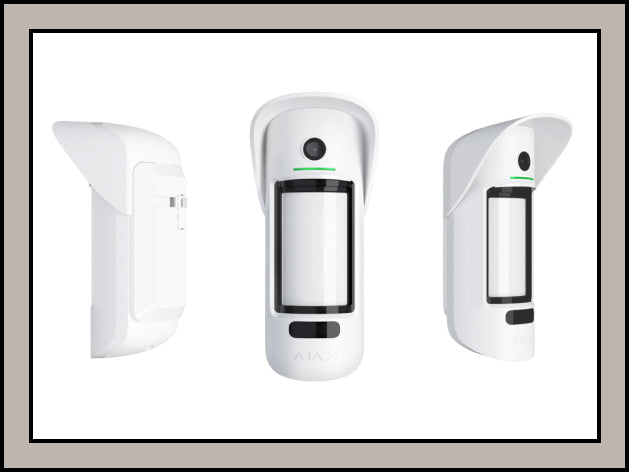

Ajax Motion Cam Outdoor (8IN) – Advanced Outdoor Protection with Visual Alarm Verification
The Ajax Motion Cam Outdoor (8IN) is a wireless infrared motion detector with a built-in photo camera, designed to verify alarms in real time for enhanced outdoor security. It features two PIR sensors with an adjustable motion detection range of 3 to 15 meters and detection angles of 90° horizontally and 80° vertically, ensuring wide coverage. The detector offers pet immunity for animals up to 80 cm in height, reducing false alarms, and is protected by an IP55-rated weather-resistant housing with an included hood for additional durability. Captured images are transmitted securely via Ajax's Jeweller and Wings protocols, ensuring fast and encrypted communication. The Motion Cam Outdoor is compatible with Ajax Hub2, Hub2 (4G), Hub2 Plus, and ReX2, making it ideal for residential and commercial perimeter protection that requires immediate visual verification of intrusions.
Specification
| Feature | Specification |
|---|---|
| Sensing Element | 2 × PIR sensors |
| Detection Distance | Adjustable, 3–15 m |
| Detection Angle | Horizontal: ~90°; Vertical: ~80° |
| Pet Immunity | Animals up to 80 cm tall |
| Camera Resolutions | 320×176 px (default), 640×352 px |
| Photo Burst | 1–5 images (320×176); up to 3 (640×352) |
| Photo Delivery Time | ≤ 9 s (320×176); ≤ 20 s (640×352) |
| Radio Protocols | Jeweller (alarms), Wings (photos) |
| Communication Range | Up to 1,700 m in open space |
| Battery & Life | 4 × CR123A batteries; up to 3 years (≈2.5 years with entry delay) |
| Anti‑Sabotage | Anti‑masking, tamper alerts, jamming detection |
| Operating Conditions | –25 °C to +60 °C; humidity up to 95%; IP56 rating |
| Dimensions & Weight | 206 × 108 × 93 mm; Weight: ~470 g |
| Installation | Indoor/outdoor; mount at 0.8–1.3 m; includes protective hood & Smart Bracket |
| Alarm Response Time | ~0.15 s |
Key Features
• Visual Verification: Captures real-time images only when an alarm is triggered, enabling fast assessment of events.
• Fast, Secure Communication: Jeweller ensures rapid alarm delivery (~0.15 s), while Wings delivers photos within 9 seconds—all via encrypted channels.
• Advanced False-Alarm Filtering: LISA algorithm analyzes dual PIR data using correlation and spectral analysis to ignore environmental noise and pet movement.
• Robust Anti-Sabotage: Detects masking, tampering, device removal, and communication jamming.
• Durable Design with Weather Shielding: Equipped with a hood to protect camera and sensors from snow/rain, with IP56 protection.
• Long Battery Life: Operates for up to 3 years, minimizing maintenance efforts.
• Remote Setup & Configuration: Easily added via QR code scanning in the Ajax app, with options for tuning detection range, sensitivity, and settings from anywhere.
Applications
• Residential Perimeters: Ideal for driveways, gardens, entryways—provides visual alerts when motion is detected.
• Commercial & Industrial Sites: Secures parking lots, warehouses, and storage yards; visual verification reduces false dispatches.
• Pet-Friendly Areas: Avoids unnecessary alarms from small animals, while still providing full visual monitoring.
• Privacy-Conscious Locations: Photos are encrypted and only taken upon alarms, protecting user privacy.
• Challenging Weather Zones: Built to withstand extreme temperatures, rain, and snow with reliable detection and imaging.
Summary
The Ajax MotionCam Outdoor (8IN) is a wireless IR motion detector with a built-in photo camera for real-time alarm verification. It uses dual PIR sensors with a detection range of 3–15 meters and 90° horizontal / 80° vertical angles. The device is pet-immune up to 80 cm and IP55-rated for outdoor durability, with a protective hood included. It captures and sends images only when motion is detected, ensuring privacy and quick response. Communication is encrypted via Jeweller and Wings protocols. It works with Hub2, Hub2 (4G), Hub2 Plus, and ReX2.
