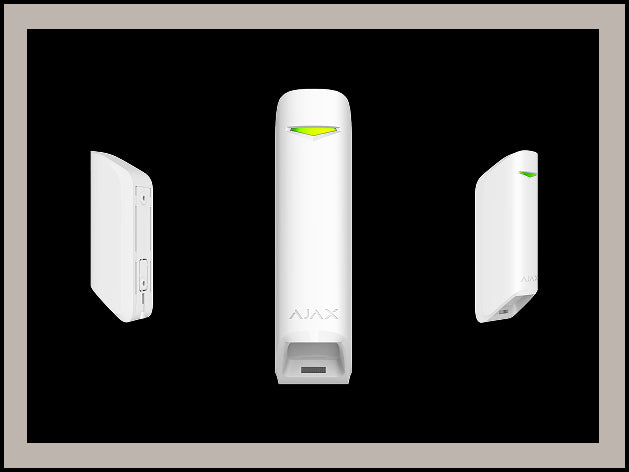

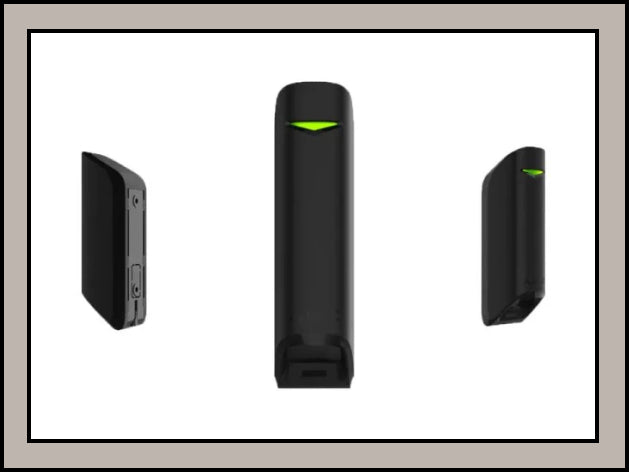

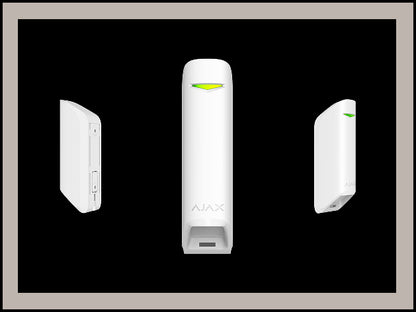

Ajax Motion Protect Curtain (8IN) – Precision Indoor Motion Detector with Wired Integration
The Ajax Motion Protect Curtain (8IN) is a wireless indoor IR curtain motion detector designed to protect windows, doors, and high-value areas by creating a narrow, invisible barrier. Utilizing two PIR sensors, it detects motion within a range of 6 to 15 meters, depending on sensitivity settings. With a horizontal detection angle of 6° and vertical angle of 90°, it offers precise, focused detection to minimize false alarms while securing specific zones. The 8IN version includes 8 wired inputs, enabling integration of third-party sensors for expanded hybrid system capabilities, all managed seamlessly through the Ajax security ecosystem.
Specification
| Parameter |
Details |
| Device Type |
Narrow-beam motion detector (curtain-type) |
| Installation |
Indoor / Outdoor |
| Detection Range |
Up to 15 meters |
| Detection Angle |
Horizontal: 6.3° |
| Pet Immunity |
Yes (ignores animals, birds, movement under detection field) |
| Detection Speed |
0.3–2.0 m/s |
| Inputs for Wired Devices |
8 wired inputs (8IN) for external sensors |
| Tamper Protection |
Yes |
| Radio Protocol |
Jeweller |
| Communication Range |
Up to 1,700 m (line of sight) |
| Power Supply |
1 × CR123A battery (3V), up to 3 years battery life |
| Operating Temperature |
-25°C to +60°C |
| Ingress Protection |
IP54 (suitable for outdoor use) |
| Dimensions |
134 × 44 × 34 mm |
| Weight |
Approx. 118 g |
| Compatible Devices |
Hub 2, Hub 2 (4G), Hub 2 Plus, ReX 2 |
Key Features
• Curtain-Style Protection: Narrow detection beam for securing windows, doors, corridors, and fences.
• 8 Wired Inputs: Connect and manage up to 8 third-party wired sensors within the Ajax ecosystem.
• Pet Immunity: Ignores animals, birds, and environmental disturbances to minimize false alarms.
• Indoor & Outdoor Use: Weather-resistant with IP54 rating and a wide temperature range.
• Long Battery Life: Operates up to 3 years on a single battery.
• Secure Wireless Communication: Reliable data transmission over Jeweller protocol with up to 1,700 m range.
• Tamper-Proof Design: Alerts the system in case of attempted removal or sabotage.
• Fast Installation & Configuration: Set up via Ajax mobile or desktop app with remote configuration.
Applications
The Ajax Motion Protect Curtain (8IN) is ideal for:
• Residential Homes – Protects windows, balconies, and entrances without obstructing movement indoors.
• Commercial Buildings – Monitors hallways, service areas, and loading docks.
• Retail Stores – Secures glass fronts and emergency exits.
• Doorway & Passage Monitoring – Perfect for narrow, high-traffic zones like corridors.
• Outdoor Perimeter Security – Provides a virtual fence line for walls, gates, and fences.
• Hybrid Alarm Systems – Easily integrates legacy wired sensors using its 8 input lines.
Summary
The Ajax Motion Protect Curtain (8IN) is a compact indoor motion detector designed for curtain-style protection of windows, doors, and valuables. It uses dual PIR sensors to detect motion within 6 to 15 meters and features a narrow 6° horizontal and 90° vertical detection angle for precise coverage. Ideal for monitoring corridors and entry points, it reduces false alarms from nearby movement. The 8IN version includes 8 wired inputs for integrating third-party sensors, making it perfect for hybrid systems. Its pet immunity and strong wireless communication ensure reliable security in residential and commercial environments.
