Ajax Motion Protect Outdoor (8IN) – Wireless Dual PIR Motion Detector for Outdoor & Indoor Security

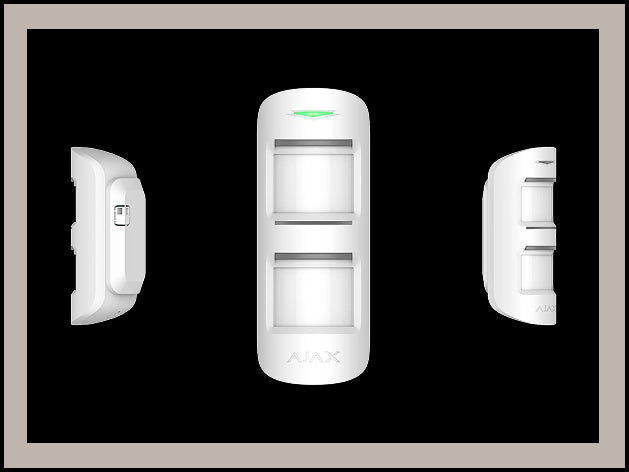

The Ajax Motion Protect Outdoor (8IN) is a wireless infrared motion detector designed for both outdoor and indoor use, delivering reliable perimeter protection in various environments. It uses a dual PIR sensor setup to detect motion accurately while minimizing false alarms. The detection range is adjustable between 3 to 15 meters, with a 90° horizontal detection angle. Thanks to its pet immunity for animals up to 80 cm in height, the device distinguishes human motion from animal activity. Rated IP55, it is built to resist dust and water, ensuring dependable operation in diverse weather conditions.
Specification
| Feature | Specification |
|---|---|
| Detection Range | Adjustable: 3–15 m |
| Detection Angle | 90° horizontal |
| Sensors | Two PIR sensors with LISA (correlation + spectral analysis) |
| Pet Immunity | Ignores pets up to 80 cm height |
| Anti‑Masking | Grade 3 EN 50131; detects covering, painting, obstructions |
| Tamper Protection | Tamper‑alarm on removal or bracket interference |
| Communication Protocol | Ajax Jeweller: two‑way radio with AES encryption, authenticated |
| Range (Open Space) | Up to 1,700 m with hub or range extender |
| Alarm Response Time | ≤ 0.15 s |
| Power | 2 × CR123A batteries (up to 5 years); optional 5–28 V DC external |
| Operating Temp | –25 °C to +60 °C (some UL certifications to +66 °C) |
| Humidity / Rating | Up to 95–100%; IP55 dust & water resistance |
| Dimensions | Approx. 183 × 70 × 65 mm |
| Weight | Around 322 g |
| Compatibility | Works with Ajax Hubs (Hub, Hub Plus) and ReX extenders |
| Remote Features | Configuration, testing, and notifications via Ajax app |
Key Features
• Advanced False‑Alarm Prevention: LISA intelligently analyzes motion via dual sensors, minimizing false triggers from environmental noise.
• Anti‑Masking Protection: Active 24/7—detects attempts to obstruct, paint, or mask the sensor viewpoint. Certified to high security standards (Grade 3).
• Pet Immunity: Accurately ignores movement from pets up to 80 cm in height.
• Robust Communication: Jeweller protocol ensures encrypted, authenticated two‑way communication with fast alarm delivery over long distances.
• Durable & Weather‑Resistant: Built to function reliably across extreme temperatures and humidity, with IP55 protection.
• Long Battery Life + Optional External Power: Offers up to 5 years of operation on batteries, with the option for mains backup
Applications
• Home Perimeters: Ideal for gardens, driveways, and front entrances to detect intruders before they reach the building.
• Commercial Security: Use around warehouses, retail perimeters, or office exteriors to secure outdoor access points.
• Large Outdoor Areas: Well-suited for industrial sites or expansive properties requiring reliable motion coverage.
• Pet-Friendly Surveillance: Perfect for households with pets, avoiding unnecessary alarms from animals.
• High‑Security Installations: Anti‑masking and tamper alerts add an extra layer of defense in sensitive zones.
Summary
The Ajax Motion Protect Outdoor (8IN) is a wireless infrared motion detector designed for indoor and outdoor use. It features dual PIR sensors for accurate motion detection with a range of 3 to 15 meters and a 90° horizontal angle. Built for harsh environments, it’s IP55-rated for water and dust resistance. The detector is pet-immune for animals up to 80 cm in height, minimizing false alarms. With long-range wireless connectivity (up to 1,700 m) and up to 5 years of battery life, it provides reliable, low-maintenance perimeter protection for residential, commercial, and industrial sites.
