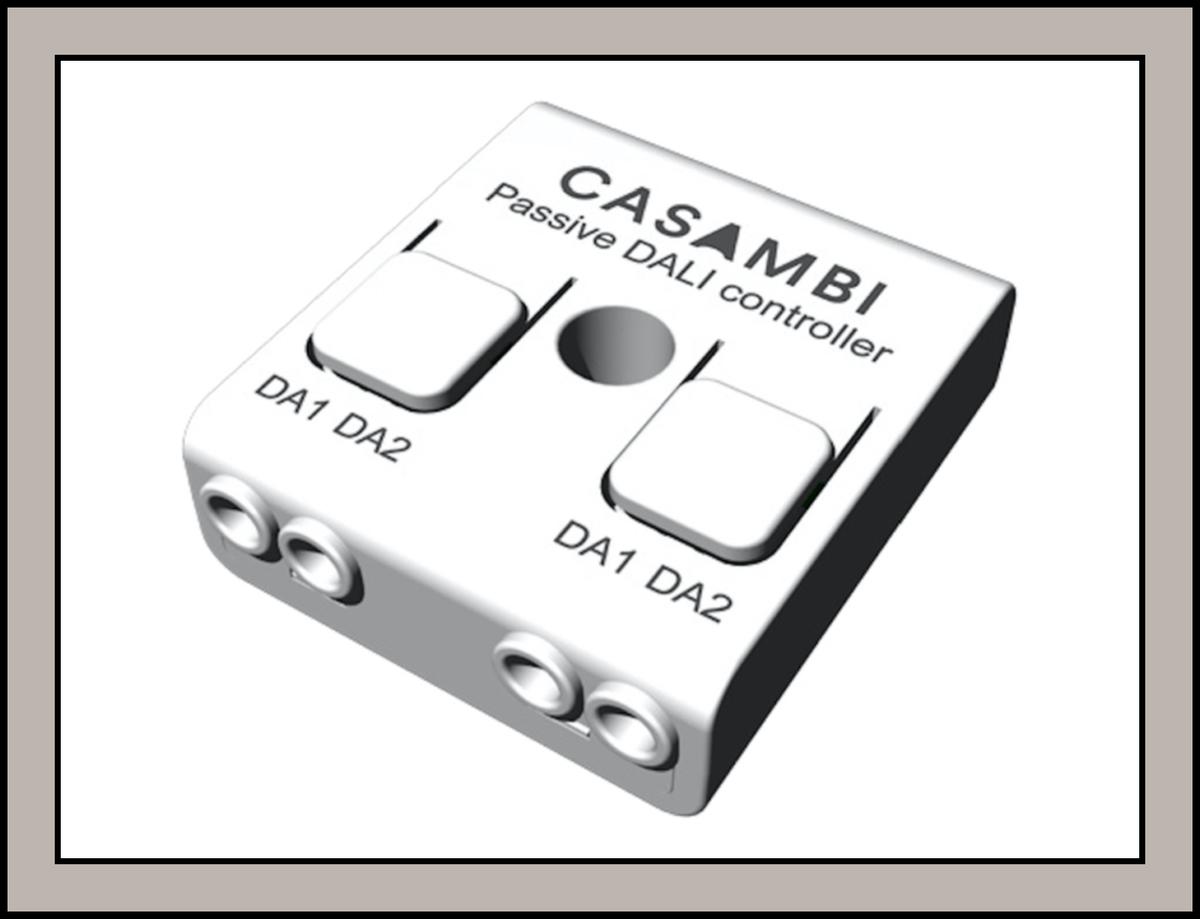

Casambi CBU-DCS,DALI Interface to Third-Party Systems

Casambi CBU-DCS DALI Interface to Third-Party Systems (no internal PSU) is a professional-grade product engineered for demanding work in controller applications. It is manufactured by Casambi under the model number CBU-DCS and is configured to perform reliably in day-to-day operations. Procurement and facility teams rely on this unit for consistent output, straightforward upkeep and predictable running costs.

Key Features

• Bluetooth-Controllable DALI Controller: The CBU-DCS is a Casambi-enabled DALI controller designed to bring compatible DALI lighting devices and sensors into a wireless Casambi lighting network.

• DALI Bus Powered: The CBU-DCS does not require a separate power supply. It is powered directly from the DALI bus with a voltage range of 9.5–22.5V DC and a maximum DALI bus current of 250mA.

• Wireless Casambi Control: Uses Bluetooth Low Energy technology to provide wireless control through the Casambi ecosystem, allowing DALI lighting devices to be managed through the Casambi App and integrated into Casambi mesh networks.

• DALI Driver & Sensor Integration: Supports connection with DALI drivers and compatible DALI sensors for applications such as presence detection and daylight harvesting.

• DT6 & DT8 Support: Supports DALI Device Type 6 and Device Type 8 control, making it suitable for applications including standard dimming, tunable white and RGB lighting control.

• DALI Gateway & Translator Functions: Can be configured as a Casambi DALI gateway or translator, providing integration between wireless Casambi networks and wired DALI lighting systems.

• Compact & Indoor Design: Features a compact 40.4 × 36.3 × 14.0mm housing with a weight of approximately 15g. The CBU-DCS has an IP20 rating and is designed for indoor applications.

• Wide Operating Temperature Range: Designed to operate reliably in ambient temperatures from -20°C to +55°C, making it suitable for a variety of indoor lighting control installations.

Applications

• Smart DALI Lighting Control: Ideal for integrating DALI-compatible luminaires and drivers into Casambi wireless lighting control systems.

• Commercial Buildings: Suitable for offices, meeting rooms, reception areas and other commercial spaces requiring centralized or wireless DALI lighting control.

• Retail Stores & Showrooms: Suitable for retail environments where dimming, tunable white, RGB and scene-based lighting control are required.

• Hospitality & Restaurants: Can be used in hotels, restaurants, lounges and hospitality environments for flexible lighting scenes, dimming and automated lighting control.

• Presence Detection & Daylight Harvesting: Suitable for installations using compatible DALI sensors for occupancy-based lighting control and daylight-responsive automation.

• Tunable White & RGB Lighting: Supports compatible DALI DT8 applications, making it suitable for dynamic colour temperature and RGB lighting installations.

Summary
In summary, DALI Interface to Third-Party Systems (no internal PSU) is a dependable controller option for field-service teams, facility managers and SMB procurement leads - practical performance, straightforward operation and clear documentation in one unit. Every unit is checked for consistent performance and correct specification before dispatch. Pricing includes applicable GST and the item is supplied against a proper invoice, which keeps procurement and accounting simple. The Casambi support network and service partners are available for installation queries and post-sales assistance.
