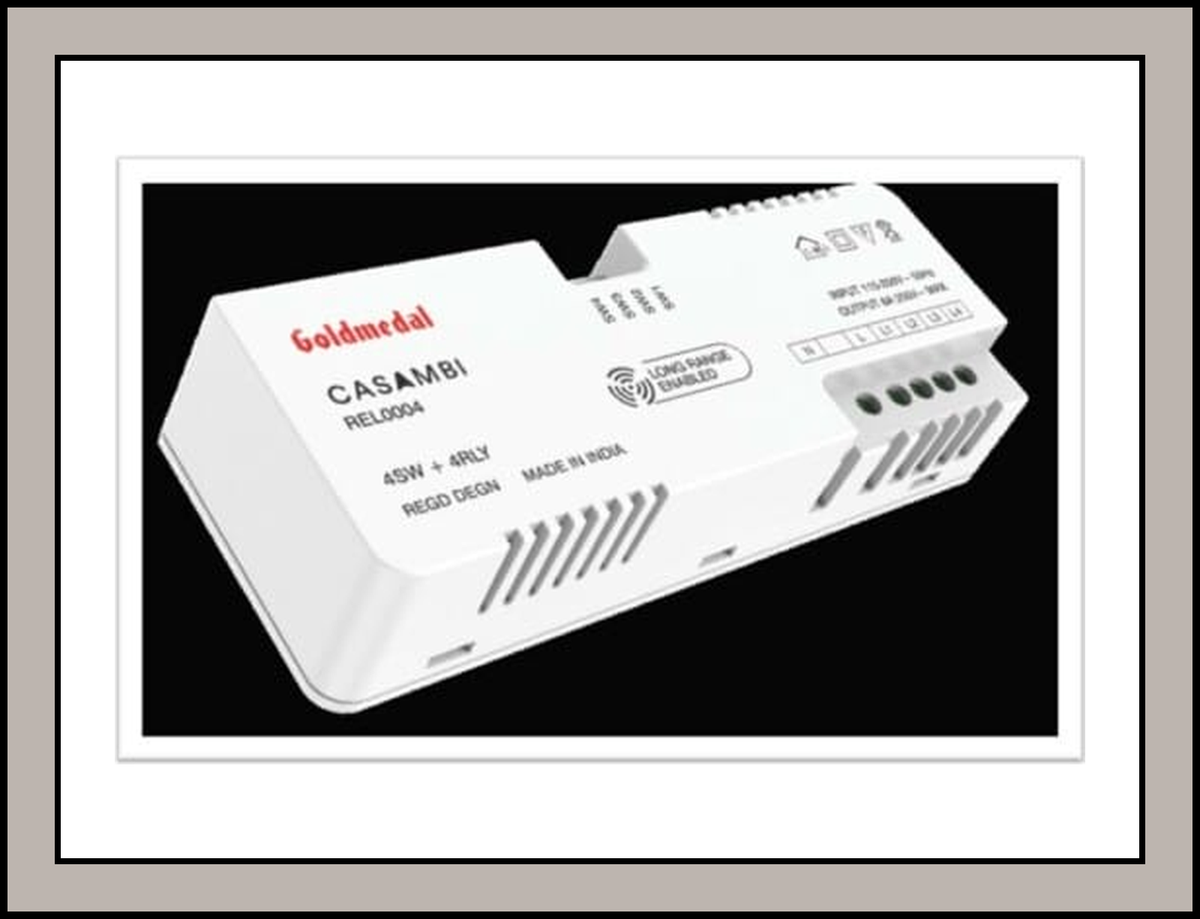

Casambi REL0004 ,4 Channel Relay 4x6A

Casambi REL0004 ,4 Channel Relay 4x6A with 4 Push Button Inputs is a professional-grade product engineered for demanding work in switching applications. It is manufactured by Gold Medal under the model number REL0004 and is configured to perform reliably in day-to-day operations. Procurement and facility teams rely on this unit for consistent output, straightforward upkeep and predictable running costs.

Key Features

• 4-Channel Relay Control: Goldmedal REL0004 is a Bluetooth Low Energy (BLE) enabled 4-channel relay control unit designed to operate four individual loads independently. Each relay supports a maximum current capacity of 6A.

• 115–265VAC Operating Range: The relay module connects directly to a 115–265VAC supply and provides four outputs within the same voltage range, making it suitable for a variety of single-phase electrical loads.

• Casambi App Control: REL0004 can be controlled through the Casambi application, allowing connected loads to be managed wirelessly through a Casambi Bluetooth network.

• 4 Programmable Push-Button Inputs: Features four dry-contact push-button inputs that can be freely programmed for functions such as individual switching, group control, dimming, master functions and scene activation.

• Versatile Automation Functions: The programmable inputs can be configured for applications including lighting control, curtain control, air-conditioning switching and temperature-control functions.

• Compact Installation Design: The compact housing allows installation inside flush-mounted boxes or cable ducts, helping provide a discreet solution for smart electrical and building automation installations.

• Wireless Bluetooth Connectivity: Designed as a Bluetooth Low Energy control unit, REL0004 enables wireless control of connected electrical loads within a Casambi network without requiring conventional wired control systems.

Applications

• Smart Home Automation: Suitable for controlling multiple lighting circuits, curtains and other electrical loads through a Casambi-enabled automation system.

• Commercial Buildings: Ideal for offices, meeting rooms, reception areas and other commercial spaces requiring centralized or wireless load control.

• Hospitality & Hotels: Can be used for room lighting, curtain control and scene-based automation in hotels, resorts and hospitality environments.

• Lighting Control Systems: Suitable for switching and managing multiple lighting loads with individual, group and scene-control functionality.

• Curtain & Blind Automation: The programmable relay outputs can be used for motorized curtain and blind control applications.

• Building Automation: Suitable for integrating switching functions such as lighting, air-conditioning and other compatible electrical loads into a Casambi-based automation network.

Summary
In summary, 4 Channel Relay 4x6A with 4 Push Button Inputs is a dependable switching option for field-service teams, facility managers and SMB procurement leads - practical performance, straightforward operation and clear documentation in one unit. Every unit is checked for consistent performance and correct specification before dispatch. Pricing includes applicable GST and the item is supplied against a proper invoice, which keeps procurement and accounting simple. The Gold Medal support network and service partners are available for installation queries and post-sales assistance.
