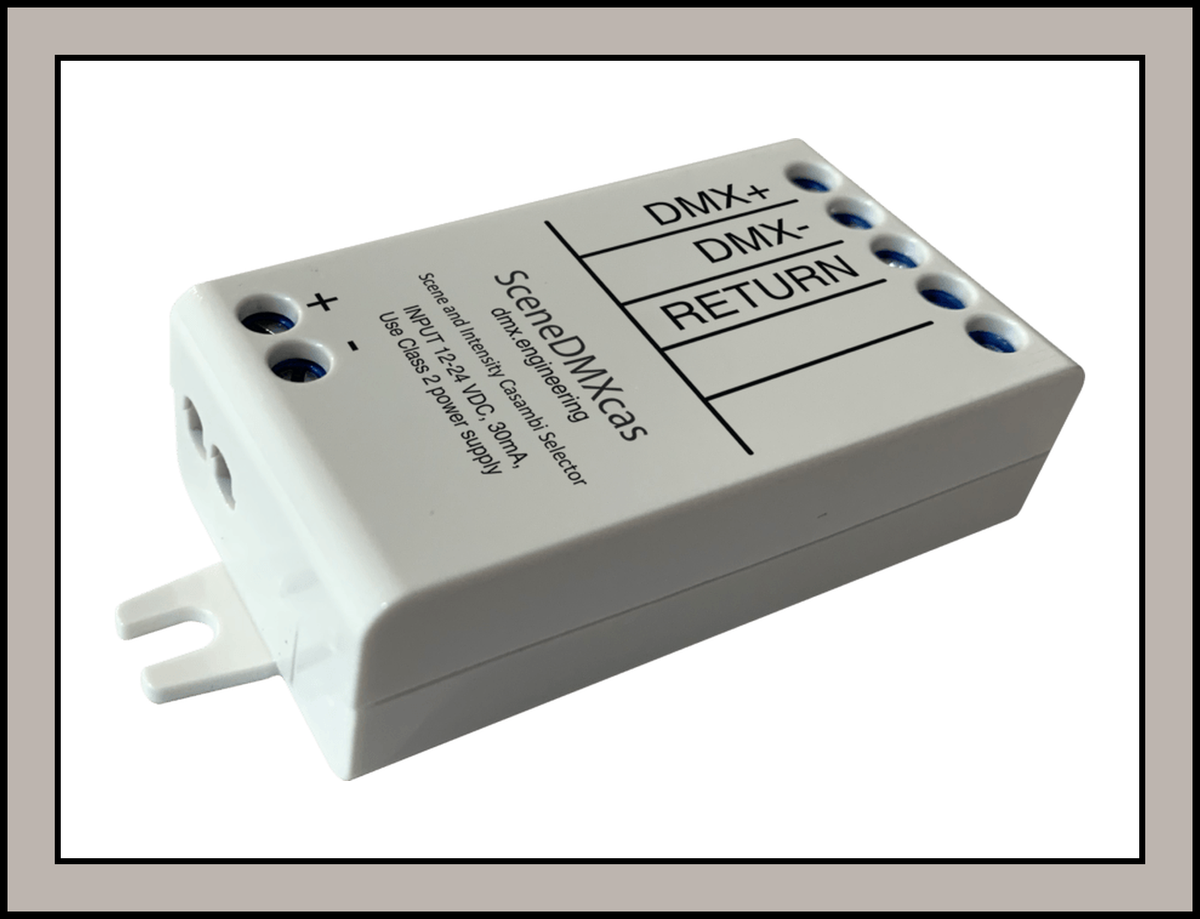

Casambi Scene-DMX-cas ,DMX to Casambi Input Device 10 Scene

DMX to Casambi Input Device 10 Scene (12-24VDC) is a professional-grade product engineered for demanding work in controller applications. It is manufactured by DMX Engineering under the model number Scene-DMX-cas and is configured to perform reliably in day-to-day operations. Procurement and facility teams rely on this unit for consistent output, straightforward upkeep and predictable running costs.

Key Features

• Casambi to DMX Scene Gateway: The SceneDMXcas is a Casambi gateway designed to connect a standard DMX digital master controller with a Casambi wireless lighting network, enabling DMX-based control of Casambi lighting scenes.

• Up to 20 Casambi Scene Selection: The first DMX channel can be mapped to select up to 20 predefined Casambi scenes, allowing different lighting configurations to be recalled directly from a DMX controller.

• 0–100% Scene Intensity Control: The second DMX channel provides 0–100% intensity control for the selected Casambi scene, allowing flexible adjustment of overall lighting levels.

• User-Selectable DMX Start Address: The DMX start address can be configured according to the installation requirements, providing flexibility when integrating the controller into existing DMX systems.

• 12–24V DC Power Supply: Operates from a 12–24V DC Class 2 power supply with a no-load input current of approximately 30mA, making it suitable for low-voltage control installations.

• DMX-512 Integration: Features a 3-wire non-isolated DMX-512 input for connection to compatible DMX master controllers and lighting control systems.

• Casambi Wireless Connectivity: Uses Casambi wireless technology to communicate with the Casambi lighting network, allowing DMX-based scene control to be integrated with wireless lighting control.

• Compact Indoor Design: Measures approximately 72.6 × 30 × 18mm and weighs around 23g. The unit is designed for indoor use and operates in ambient temperatures from -25°C to +45°C.

Applications

• Stage & Event Lighting: Ideal for integrating DMX lighting consoles with Casambi-controlled luminaires for scene-based lighting control in theatres, stages and event venues.

• Hotels & Hospitality: Suitable for hotels, restaurants, lounges and entertainment spaces where predefined lighting scenes need to be recalled and adjusted through DMX systems.

• Retail Stores & Showrooms: Can be used to integrate existing DMX control equipment with Casambi lighting networks for display, accent and ambient lighting scenes.

• Architectural Lighting: Suitable for architectural projects requiring wireless Casambi lighting control combined with established DMX infrastructure.

• Commercial Buildings: Ideal for offices, meeting spaces and commercial environments where centralized DMX equipment needs to control predefined Casambi lighting scenes.

Summary
In summary, DMX to Casambi Input Device 10 Scene (12-24VDC) is a dependable controller option for field-service teams, facility managers and SMB procurement leads - practical performance, straightforward operation and clear documentation in one unit. Every unit is checked for consistent performance and correct specification before dispatch. Pricing includes applicable GST and the item is supplied against a proper invoice, which keeps procurement and accounting simple. The DMX Engineering support network and service partners are available for installation queries and post-sales assistance.
