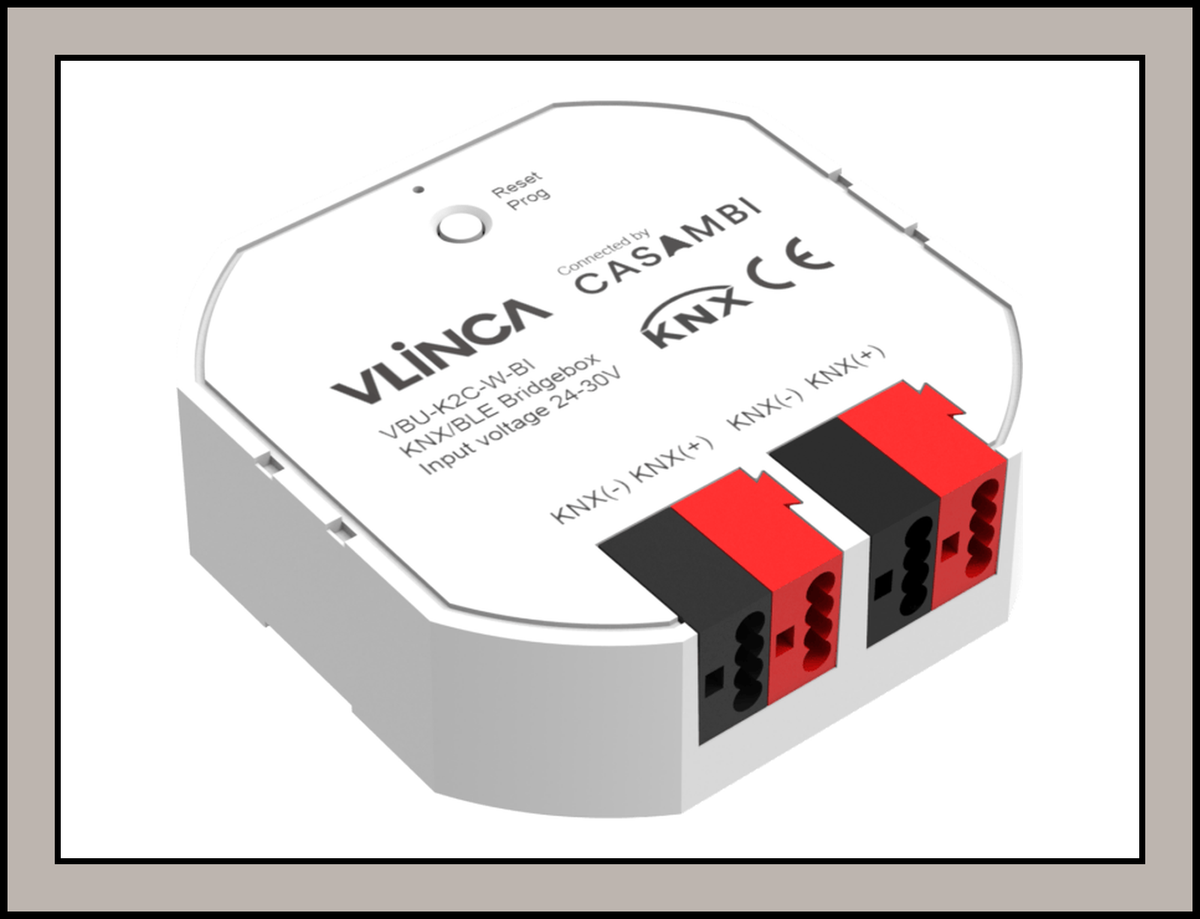

Casambi VBU-K2C-W-BI ,KNX to Casambi 16 Bi-Directional Scenes

Casambi VBU-K2C-W-BI,KNX to Casambi 16 Bi-Directional Scenes is a professional-grade product engineered for demanding work in misc applications. It is manufactured by KNX Vlinca under the model number VBU-K2C-W-BI and is configured to perform reliably in day-to-day operations. Procurement and facility teams rely on this unit for consistent output, straightforward upkeep and predictable running costs.

Key Features

• KNX & Casambi Bridge Gateway: The VBU-K2C-W-BI is a bridge device designed to connect KNX/EIB building automation systems with Casambi wireless lighting networks, enabling communication between wired KNX control and Casambi lighting devices.

• Bidirectional KNX-Casambi Communication: Supports communication between KNX and Casambi in both directions, allowing control information to be exchanged between the two systems for integrated lighting automation.

• Up to 32 KNX Channels & 32 Casambi Scenes: The gateway supports up to 32 KNX channels and 32 Casambi scenes, providing flexible configuration for lighting control applications.

• Scene Switching & Dimming: Supports scene ON/OFF control and dimming from KNX to Casambi, allowing KNX wall switches, sensors and other compatible controls to operate Casambi lighting scenes.

• KNX Bus Powered: Operates from a 24–30V input supplied through the KNX/EIB bus, with low bus current consumption, eliminating the need for a separate power supply.

• Bluetooth Casambi Connectivity: Uses Bluetooth wireless communication to connect with Casambi devices and networks, providing wireless integration between KNX and Casambi lighting systems.

• Compact Built-In Installation: Designed for installation inside an 80/86mm junction box, with a compact form factor suitable for concealed installation behind switches or control interfaces.

• Dry Contact & 24V Input Options: Provides flexible signal input options for connecting compatible dry-contact controls or 24V control signals, expanding integration possibilities.

Applications

• Smart Building Automation: Ideal for integrating Casambi wireless lighting with existing KNX building automation systems.

• Commercial Buildings: Suitable for offices, corporate buildings and commercial premises where KNX-based building control needs to operate Casambi lighting.

• Hotels & Hospitality: Can be used in hotels, restaurants and hospitality environments to connect KNX controls with Casambi lighting scenes and dimming functions.

• Residential Automation: Suitable for smart homes and residential projects using KNX infrastructure alongside Casambi wireless lighting.

• Retail Stores & Showrooms: Ideal for integrating KNX control systems with Casambi-based display, accent and general lighting.

• Architectural Lighting: Suitable for projects requiring coordinated control between wired KNX automation and wireless Casambi lighting systems.

• Building Management Integration: Provides a practical interface for connecting Casambi lighting to KNX-based building management and automation infrastructure.

Summary
In summary, KNX to Casambi 16 Bi-Directional Scenes is a dependable misc option for field-service teams, facility managers and SMB procurement leads - practical performance, straightforward operation and clear documentation in one unit. Every unit is checked for consistent performance and correct specification before dispatch. Pricing includes applicable GST and the item is supplied against a proper invoice, which keeps procurement and accounting simple. The KNX Vlinca support network and service partners are available for installation queries and post-sales assistance.
