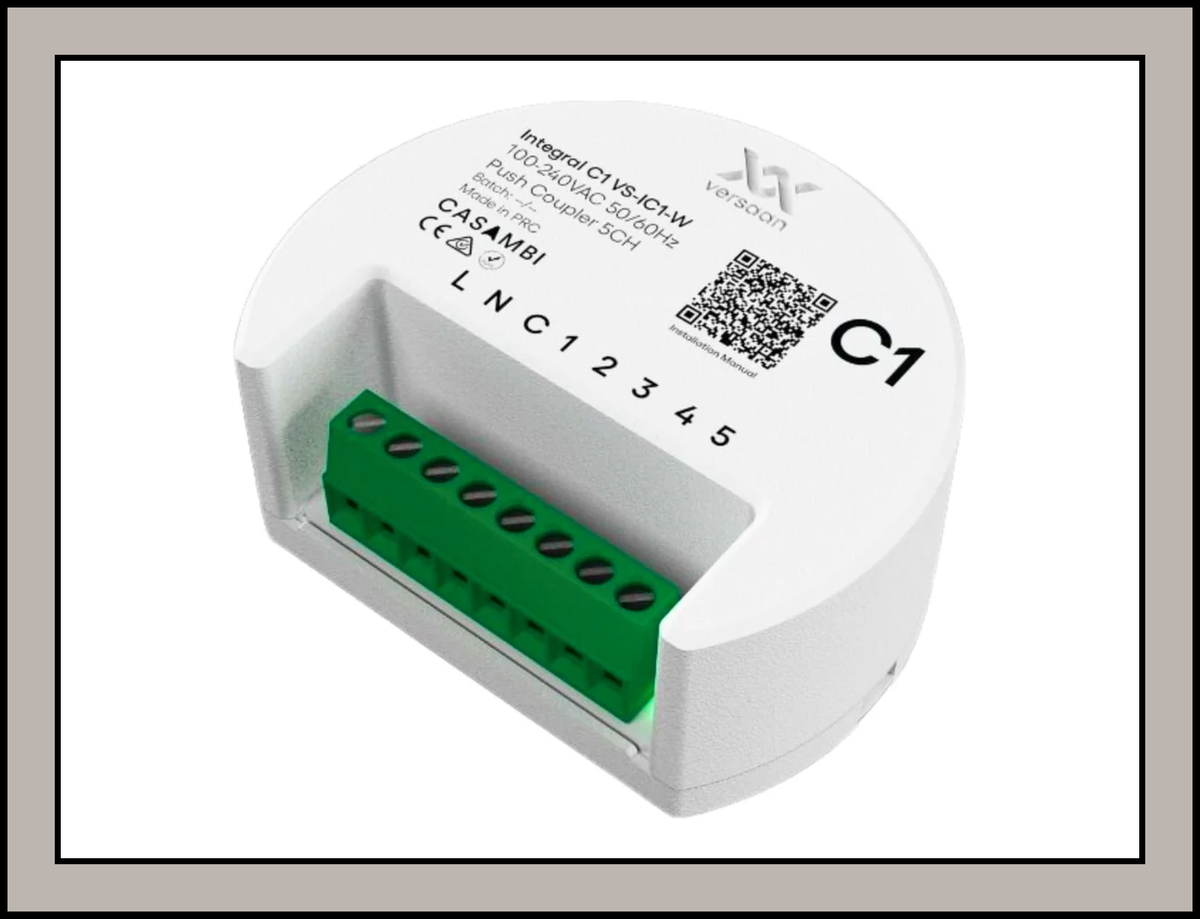

Casambi VS-IC1-W , Push Button Coupler

Casambi VS-IC1-W,Push Button Coupler (momentary switch to smart controller) is a professional-grade product engineered for demanding work in push button coupler applications. It is manufactured by Versaan under the model number VS-IC1-W and is configured to perform reliably in day-to-day operations. Procurement and facility teams rely on this unit for consistent output, straightforward upkeep and predictable running costs.

Key Features

• 5-Channel Casambi Push-Button Controller: The VS-IC1-W Integral C1 is a compact Casambi wireless push-button interface with five programmable push-button inputs for controlling lighting functions.

• Multiple Lighting Control Functions: Each push button can be configured for functions such as ON/OFF control, dimming, scene selection and other Casambi lighting commands.

• Casambi Long-Range Wireless Control: Integrates with the Casambi wireless lighting ecosystem and supports a wireless range of up to 98m, or up to 180m using Long Range in open-air line-of-sight conditions.

• Wide 100–240VAC Supply: Operates from a 100–240VAC, 50/60Hz supply, making it suitable for a wide range of residential and commercial lighting installations.

• Compact Switch-Box Installation: Measuring approximately 52 × 42.51 × 22mm, the C1 is designed to fit inside standard switch boxes and other confined installation spaces.

• 5 Push-Button Inputs: Provides five independently configurable inputs for momentary push-button switches, enabling flexible local control of Casambi lighting networks.

• Loop-In / Loop-Out Wiring: Supports loop-in and loop-out wiring with a terminal capacity of up to 1.5mm², simplifying installation and connection within electrical switch boxes.

• Built-In Identification LED: Includes an integrated LED indicator that helps identify the device during installation and commissioning, particularly when multiple units are installed within the same switch box.

• Durable Indoor Construction: Features a flame-retardant ABS+PC housing with an IP20 rating and is designed to operate in ambient temperatures from 0°C to 55°C.

Applications

• Residential Lighting Control: Ideal for homes, apartments and villas requiring programmable wall-switch control for Casambi-enabled lighting systems.

• Commercial Buildings: Suitable for offices, meeting rooms, reception areas and other commercial spaces requiring flexible wireless lighting control.

• Hotels & Hospitality: Can be used in hotels, restaurants, lounges and hospitality environments for controlling lighting scenes, dimming and ON/OFF functions.

• Retail Stores & Showrooms: Suitable for display areas, showrooms and retail spaces where multiple lighting functions need to be controlled from conventional push buttons.

• Smart Home Automation: Ideal for integrating traditional momentary wall switches into a Casambi wireless lighting network.

• Architectural Lighting: Suitable for residential and commercial architectural lighting projects requiring programmable scene and dimming control.

Summary
In summary, Push Button Coupler (momentary switch to smart controller) is a dependable push button coupler option for field-service teams, facility managers and SMB procurement leads - practical performance, straightforward operation and clear documentation in one unit. Every unit is checked for consistent performance and correct specification before dispatch. Pricing includes applicable GST and the item is supplied against a proper invoice, which keeps procurement and accounting simple. The Versaan support network and service partners are available for installation queries and post-sales assistance.
