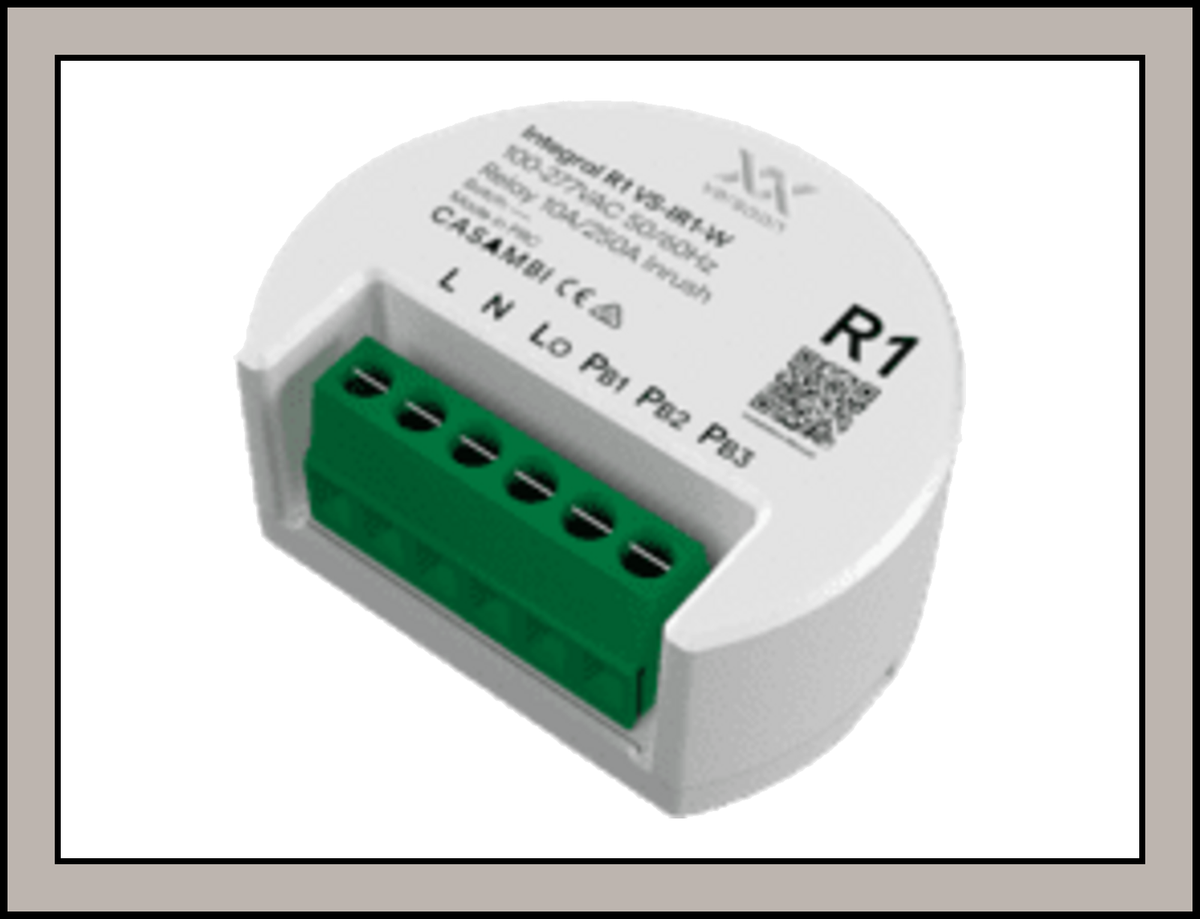

Cosambi VS-IR1-W ,1CH 10A Relay Controller with 3 Push Button Inputs

Cosambi VS-IR1-W , 1CH 10A Relay Controller with 3 Push Button Inputs is a professional-grade product engineered for demanding work in controller applications. It is manufactured by Versaan under the model number VS-IR1-W and is configured to perform reliably in day-to-day operations. Procurement and facility teams rely on this unit for consistent output, straightforward upkeep and predictable running costs.

Key Features

• 10A Casambi Wireless Relay: The VS-IR1-W Integral R1 is a compact wireless relay controller designed for Casambi smart lighting systems, supporting switching of loads up to 10A.

• Capacitive, Inductive & Resistive Loads: The relay supports up to 10A for capacitive, inductive and resistive loads, making it suitable for switching a wide range of compatible lighting and electrical loads.

• High Inrush Current Capability: Supports maximum inrush currents of up to 250A for 1ms and 140A for 10ms, making it suitable for applications where connected loads can produce high startup currents.

• Casambi Long-Range Wireless Control: Integrates with the Casambi wireless lighting ecosystem and supports Long Range communication, with a wireless range of up to 98m and up to 180m using Long Range in open-air line-of-sight conditions.

• 3 Push-Button Inputs: Features three push-button inputs for local manual control, allowing compatible momentary switches to be used alongside wireless Casambi control.

• Wide 100–277VAC Supply: Operates from a 100–277VAC, 50/60Hz power supply, providing flexibility for residential and commercial lighting installations.

• Compact Switch-Box Design: Measuring approximately 52 × 42.51 × 22mm, the VS-IR1-W is designed for compact installation in electrical switch boxes and other confined spaces.

• Loop-In / Loop-Out Wiring: Supports loop-in and loop-out wiring with a terminal capacity of up to 2.5mm², simplifying electrical installation.

• Durable Indoor Construction: Features a flame-retardant ABS+PC housing, IP20 protection and a 2.4GHz ISM-band transceiver. The unit is designed for indoor applications.

Applications

• Residential Lighting Control: Ideal for homes, apartments and villas requiring wireless ON/OFF control of compatible lighting and electrical loads.

• Commercial Buildings: Suitable for offices, meeting rooms, reception areas and commercial spaces requiring Casambi-based relay switching.

• Hotels & Hospitality: Can be used in hotels, restaurants, lounges and hospitality environments for wireless switching, scene control and lighting automation.

• Retail Stores & Showrooms: Suitable for controlling compatible display, accent and general lighting loads through a Casambi wireless lighting system.

• Smart Home Automation: Ideal for integrating conventional electrical loads into a Casambi smart lighting network with both wireless and local push-button control.

• Architectural Lighting: Suitable for architectural and decorative lighting projects requiring reliable relay-based switching and wireless scene automation.

• Commercial & Electrical Load Switching: Can be used for compatible capacitive, inductive and resistive loads where a compact 10A Casambi relay controller is required.

Summary
In summary, 1CH 10A Relay Controller with 3 Push Button Inputs is a dependable controller option for field-service teams, facility managers and SMB procurement leads - practical performance, straightforward operation and clear documentation in one unit. Every unit is checked for consistent performance and correct specification before dispatch. Pricing includes applicable GST and the item is supplied against a proper invoice, which keeps procurement and accounting simple. The Versaan support network and service partners are available for installation queries and post-sales assistance.
