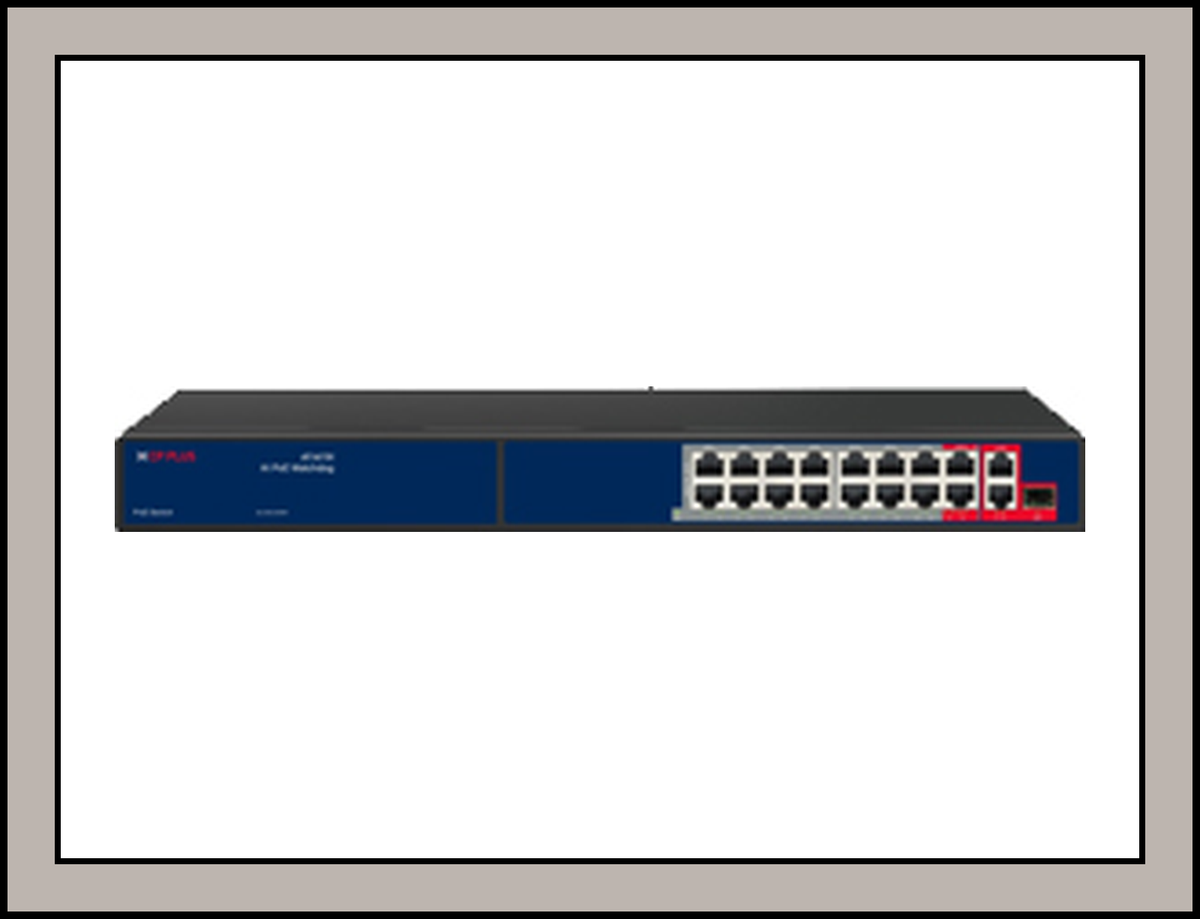

CP-ANW-HP16G2F1-N30 16EP+2G+1SFP AI PoE Switch

CP-ANW-HP16G2F1-N30 16EP+2G+1SFP AI PoE Switch is a professional-grade product engineered for demanding work in poe applications. It is manufactured by CP Plus under the model number CP-ANW-HP16G2F1-N30 and is configured to perform reliably in day-to-day operations. Procurement and facility teams rely on this unit for consistent output, straightforward upkeep and predictable running costs.

Key Features

• 16-Port AI PoE Switch with 2 Gigabit Uplink Ports and 1 SFP Fiber Uplink features 16 PoE ports, 2 Gigabit RJ45 uplink ports, and 1 Gigabit SFP uplink port, making it ideal for large CCTV and networking deployments.

• IEEE 802.3af/at/bt PoE compliance supports high-power devices with up to 60W output per port, making it suitable for PTZ cameras, wireless access points, video intercoms, and other PoE-powered equipment.

• 300W total PoE power budget provides sufficient power for multiple IP cameras and network devices operating simultaneously.

• AI PoE Watchdog function automatically detects disconnected or unresponsive PoE devices and restarts them, minimizing downtime and reducing maintenance requirements.

• Long-range transmission up to 250 meters on Fast Ethernet ports enables deployment of surveillance cameras over extended distances without additional networking hardware.

• 12.8 Gbps switching capacity with 8K MAC address table ensures stable data transmission and efficient handling of multiple connected devices.

• Built-in 6KV lightning protection and 8KV surge protection safeguards connected devices against electrical disturbances, voltage spikes, and harsh environmental conditions.

• Plug-and-play unmanaged design with Auto MDI/MDIX support simplifies installation and eliminates the need for complex network configuration.

Applications

• CCTV Surveillance Systems: Ideal for connecting and powering up to 16 IP cameras in commercial, industrial, and residential surveillance projects.

• Corporate Offices & Commercial Buildings: Supports IP phones, wireless access points, surveillance cameras, and access control systems.

• Warehouses & Industrial Facilities: Provides reliable networking and PoE power for monitoring systems, production areas, and logistics operations.

• Retail Stores & Shopping Complexes: Enables centralized connectivity for security cameras, POS systems, and network infrastructure.

• Educational Institutions: Suitable for campus surveillance, classroom monitoring, Wi-Fi deployments, and access control systems.

• Hotels, Hospitals & Large Facilities: Delivers stable network connectivity and power for surveillance and communication devices across multiple locations.

Summary
In summary, CP-ANW-HP16G2F1-N30 16EP+2G+1SFP AI PoE Switch is a dependable poe option for field-service teams, facility managers and SMB procurement leads - practical performance, straightforward operation and clear documentation in one unit. Every unit is checked for consistent performance and correct specification before dispatch. the item is supplied against a proper invoice, which keeps procurement and accounting simple. The CP Plus support network and service partners are available for installation queries and post-sales assistance.
