CP Plus Cat6 24AWG UTP Outdoor LAN Cable (Double Jacket) 100m : CP-EUT-6TGD23-100

CP Plus Cat6 24AWG UTP Outdoor LAN Cable (Double Jacket) 100m is a professional-grade product engineered for demanding work in accessories applications. It is manufactured by CP Plus under the model number CP-EUT-6TGD23-100 and is configured to perform reliably in day-to-day operations. Procurement and facility teams rely on this unit for consistent output, straightforward upkeep and predictable running costs.

Key Features

• Cat6 24AWG Outdoor LAN Cable: CP-EUT-6TGD23-100 is a Cat6 UTP outdoor LAN cable designed for reliable data, voice and video transmission in surveillance and networking installations.

• 100% Solid Bare Electrolytic Grade Copper: Uses a solid bare copper conductor for dependable signal transmission and consistent network performance.

• 24 AWG Conductor: Features a 24 AWG conductor with an approximate diameter of 0.48mm ± 0.020mm, suitable for structured LAN and CCTV network installations.

• Double-Jacket Outdoor Construction: The cable uses an inner PVC jacket and an outer PE jacket to provide additional protection for outdoor installations and demanding environments.

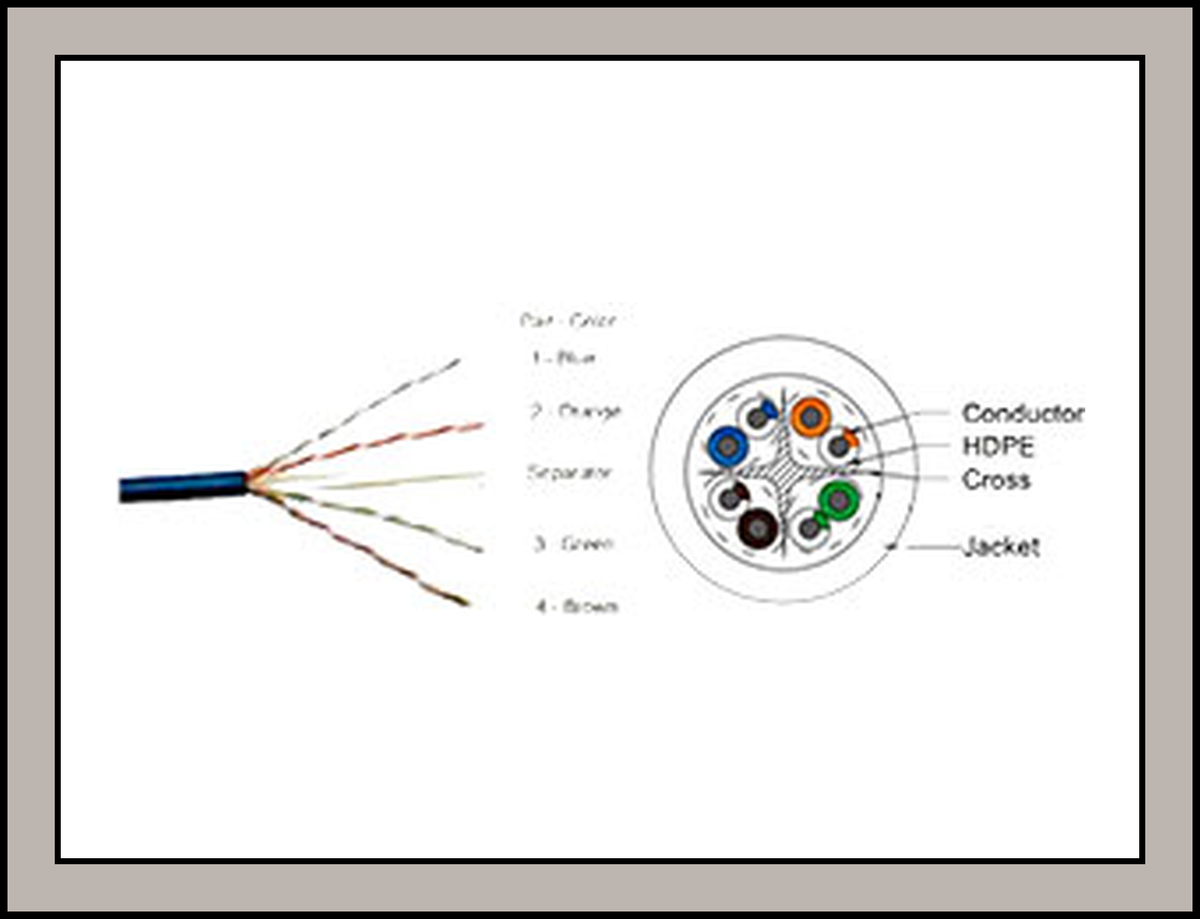

• HDPE Insulation & Cross Separator: Polyethylene (HDPE) insulation and a cross-separator design help maintain separation between the four twisted pairs and support reliable signal transmission.

• 100m Cable Length: Supplied in a 100-meter pack, making it suitable for CCTV camera networks, LAN connectivity, PoE installations and other structured cabling requirements.

• Outdoor & Weather Protection: The robust outer construction is designed to provide added protection against outdoor environmental conditions, making it suitable for fixed outdoor installations.

• 100Ω Characteristic Impedance: Provides a characteristic impedance of approximately 100Ω ±15%, with a nominal velocity of propagation of 69%.

Applications

• CCTV Surveillance Systems: Ideal for connecting IP cameras, NVRs, PoE switches and other network surveillance equipment.

• Outdoor Networking: Suitable for LAN connectivity between buildings, outdoor equipment and network access points.

• Residential Security: Can be used for connecting outdoor IP cameras and networking devices around homes, gates and property boundaries.

• Commercial Buildings: Suitable for CCTV and LAN infrastructure in offices, retail stores, showrooms and commercial premises.

• Warehouses & Industrial Facilities: Ideal for network and surveillance connectivity across warehouses, factories, loading areas and other industrial locations.

• Outdoor PoE Installations: Suitable for network infrastructure where cameras and other PoE-enabled devices require reliable Ethernet cabling.

Summary
In summary, CP Plus Cat6 24AWG UTP Outdoor LAN Cable (Double Jacket) 100m is a dependable accessories option for field-service teams, facility managers and SMB procurement leads - practical performance, straightforward operation and clear documentation in one unit. Every unit is checked for consistent performance and correct specification before dispatch. Pricing includes applicable GST and the item is supplied against a proper invoice, which keeps procurement and accounting simple. The CP Plus support network and service partners are available for installation queries and post-sales assistance.
