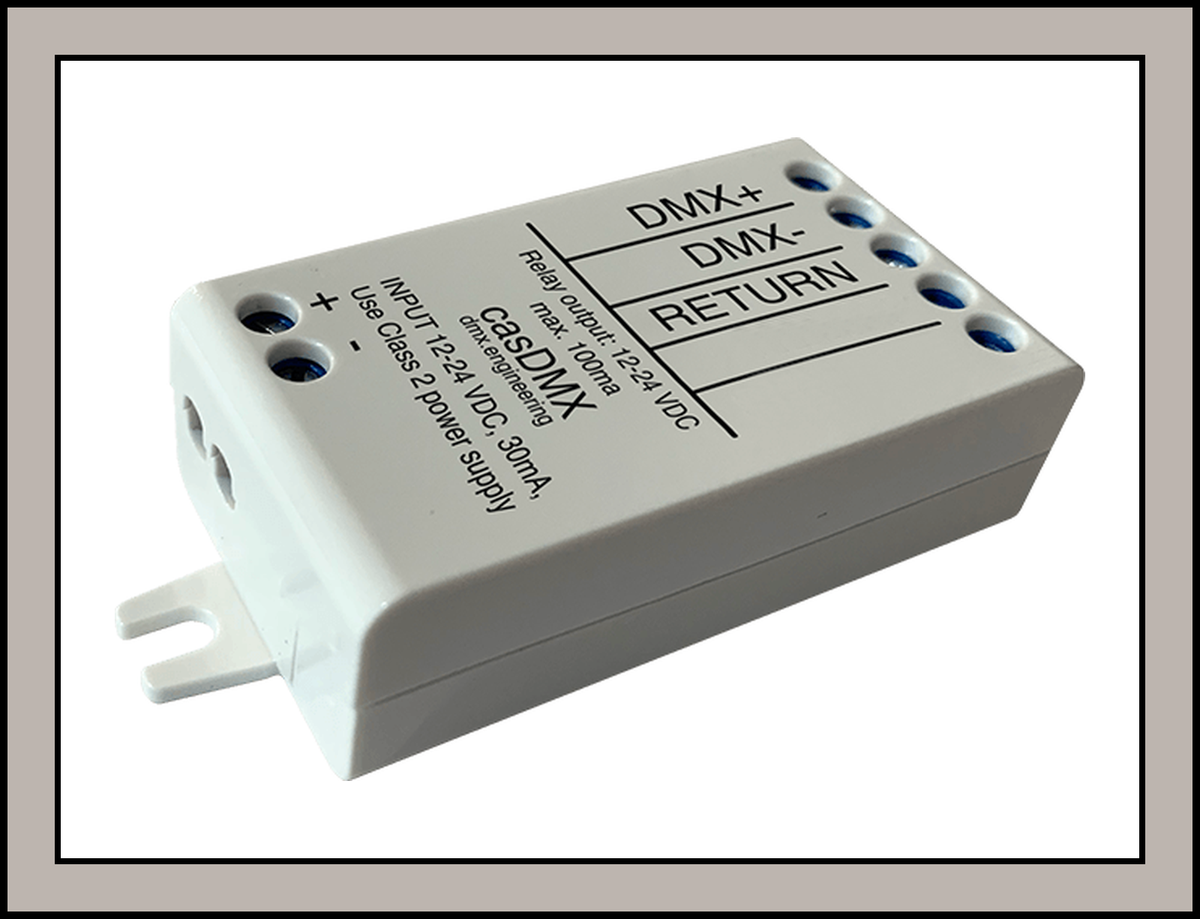

Casambi CasDMX, DMX-512 12CH Master (12-24VDC)

DMX-512 12CH Master (12-24VDC) is a professional-grade product engineered for demanding work in controller applications. It is manufactured by DMX Engineering under the model number CasDMX and is configured to perform reliably in day-to-day operations. Procurement and facility teams rely on this unit for consistent output, straightforward upkeep and predictable running costs.

Key Features

• Casambi-Enabled DMX Master: The casDMX is a Bluetooth-controllable, Casambi-enabled DMX-512 master dimmer designed to connect DMX-enabled lighting fixtures and drivers to a Casambi wireless lighting network.

• 12-Channel DMX Control: Supports up to 12 DMX channels in Evolution mode, providing flexible control for multi-channel lighting applications. It can also be configured for 4-channel and 8-channel control profiles.

• RGBW & Tunable White Control: Supports Casambi color control and multi-channel slider configurations, making it suitable for RGBW, tunable white and other dynamic LED lighting applications.

• Single DMX-512 Universe: Generates one DMX-512 universe through a 3-wire non-isolated DMX output, allowing connection to compatible DMX lighting devices and fixtures.

• 12–24V DC Power Supply: Operates from a 12–24V DC Class 2 power supply with a typical no-load input current of approximately 30mA, providing flexible low-voltage installation options.

• Casambi Wireless Connectivity: Uses Casambi Bluetooth wireless technology to integrate DMX lighting equipment into a wireless mesh network and allows lighting control through the Casambi App.

• Flexible Casambi Profiles: Supports different control profiles, including standard 4-channel color functions, 8-channel slider control and up to 12-channel slider control in Evolution mode.

• Compact Indoor Design: Measures approximately 72.6 × 30 × 18mm and weighs around 23g. The unit is designed for indoor installations and operates in ambient temperatures from -25°C to +45°C.

Applications

• RGBW LED Lighting: Ideal for controlling RGBW fixtures and multi-channel LED lighting through a Casambi wireless lighting network.

• Tunable White Lighting: Suitable for tunable white installations requiring flexible control of multiple lighting channels and adjustable colour temperature.

• Stage & Entertainment Lighting: Can integrate compatible DMX lighting fixtures with Casambi wireless control for theatres, event spaces and entertainment venues.

• Retail Stores & Showrooms: Suitable for dynamic display, accent and architectural lighting where multi-channel DMX control and wireless scene management are required.

• Hotels & Hospitality: Ideal for hotels, restaurants, lounges and hospitality environments requiring programmable colour, intensity and lighting scenes.

• Architectural & Commercial Lighting: Suitable for commercial buildings and architectural projects that use DMX-compatible lighting fixtures and require integration with a Casambi wireless lighting system.

• Smart DMX Lighting Integration: Provides a flexible solution for bringing existing DMX-controlled lighting equipment into a Casambi wireless lighting ecosystem.

Summary
In summary, DMX-512 12CH Master (12-24VDC) is a dependable controller option for field-service teams, facility managers and SMB procurement leads - practical performance, straightforward operation and clear documentation in one unit. Every unit is checked for consistent performance and correct specification before dispatch. Pricing includes applicable GST and the item is supplied against a proper invoice, which keeps procurement and accounting simple. The DMX Engineering support network and service partners are available for installation queries and post-sales assistance.
