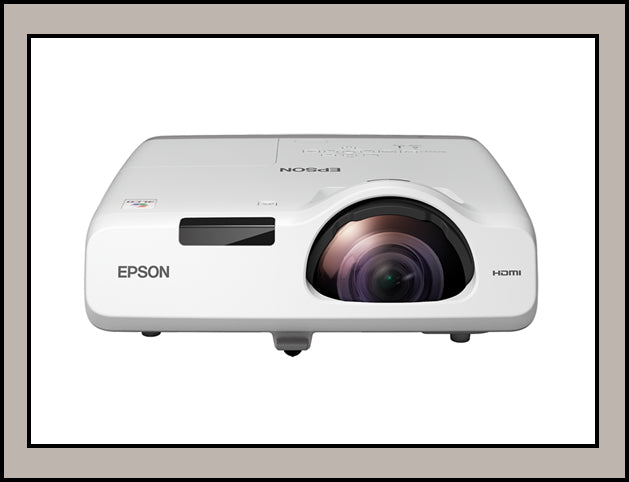

Epson EB-530 Projector
Epson EB-530 Projector
The Epson EB-530 is a high-brightness XGA short-throw projector designed for classrooms, meeting rooms, and business presentations. Powered by Epson’s advanced 3LCD technology, it delivers vibrant colors and sharp image quality with 3200 lumens brightness and a 16,000:1 contrast ratio. Its short-throw capability allows large-screen projection from a short distance, making it ideal for compact spaces while minimizing shadows and glare.
Product Specifications
| Specification | Details |
|---|---|
| Model | Epson EB-530 |
| Projection Technology | 3LCD Technology |
| Resolution | XGA (1024 × 768) |
| Brightness | 3200 Lumens |
| Contrast Ratio | 16,000:1 |
| Aspect Ratio | 4:3 |
| Lamp Type | 215W UHE Lamp |
| Lamp Life | Up to 5,000 hrs (Normal), 10,000 hrs (Eco) |
| Throw Ratio | 0.55:1 (Short Throw) |
| Screen Size | 50" to 108" |
| Lens | Manual Focus, Digital Zoom 1–1.35x |
| Keystone Correction | ±15° Vertical & Horizontal |
| Connectivity | HDMI, VGA In/Out, USB-A, USB-B, Ethernet, RS-232C, Composite, S-Video |
| Audio | Built-in 16W Speaker, Mic Input |
| Wireless Connectivity | Optional Wi-Fi |
| Noise Level | 37dB (Normal), 29dB (Eco) |
| Dimensions | 344 × 315 × 94 mm |
| Weight | Approx. 3.7 kg |
| Power Consumption | 298W (Normal), 221W (Eco) |
Key Features
• 3200 lumens white and color brightness ensures clear and bright presentations even in well-lit rooms
• XGA (1024 × 768) resolution with 3LCD technology delivers accurate colors and sharp image quality
• Short-throw projection ratio (0.55:1) enables large-screen display from a very short distance
• 16,000:1 contrast ratio provides deeper blacks and enhanced presentation clarity
• Long lamp life up to 10,000 hours in Eco mode reduces maintenance costs
• HDMI, VGA, USB, Ethernet, and optional Wi-Fi connectivity support flexible integration
Applications
• Classrooms and training rooms for interactive teaching and presentations
• Corporate meeting rooms and conference halls for professional presentations
• Retail stores and exhibitions for digital signage and promotional displays
• Small auditoriums and seminar halls requiring bright large-screen projection
• Educational institutes and offices needing short-distance projection setups
Summary
The Epson EB-530 is a reliable short-throw projector offering bright 3200-lumen output, excellent color accuracy, and flexible connectivity options. Its compact installation capability, long lamp life, and built-in audio features make it an ideal choice for classrooms, offices, and business environments requiring high-quality presentations in limited spaces.
