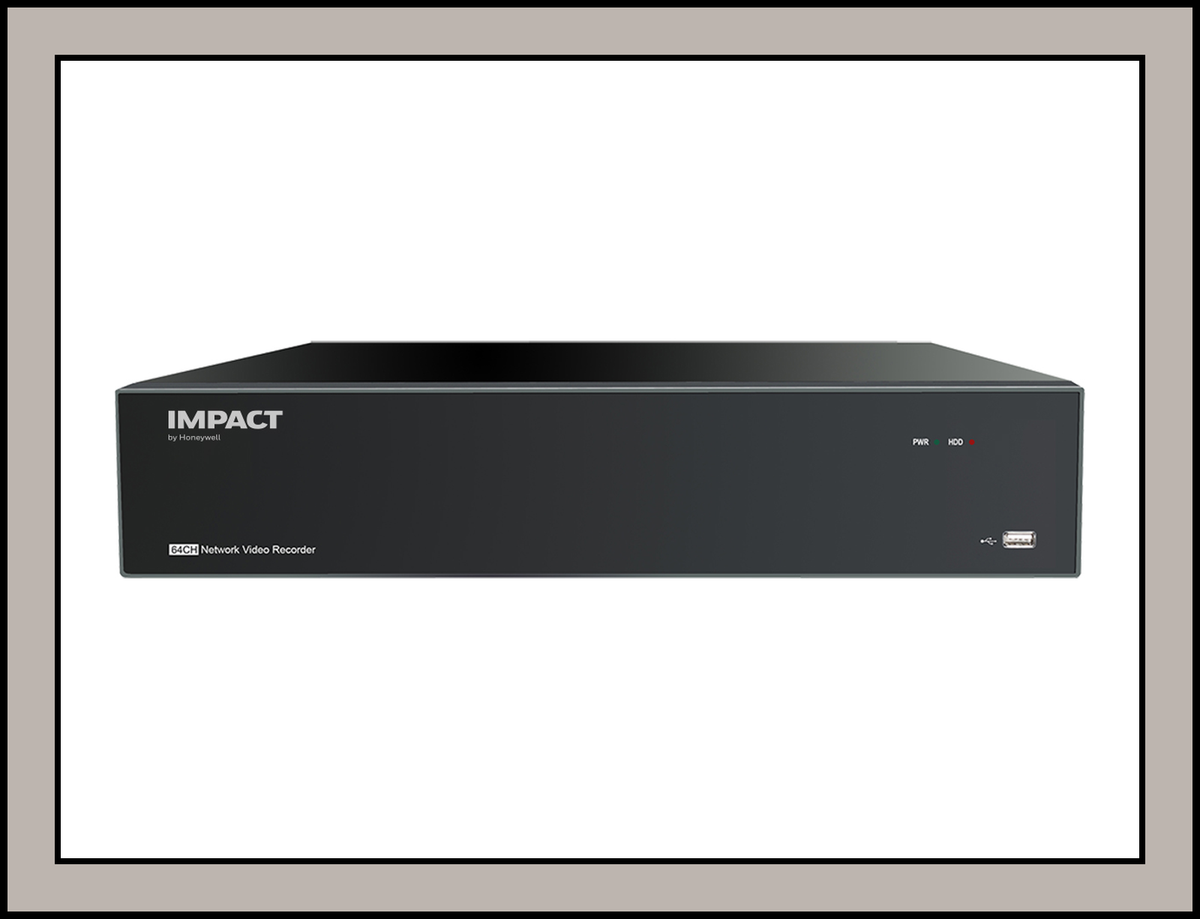

Honeywell Impact I-HPNVR-464 64 Channel NVR with 4 HDD Support

Honeywell Impact I-HPNVR464 is a 64-channel network video recorder from the Impact by Honeywell I-HPNVR enterprise series, designed for large campuses and industrial sites that need high channel counts from a single reliable head-end. It manages up to 64 IP cameras across four hard-drive bays, decodes up to 12 MP streams, and supports RAID 0 and RAID 1 with dual Ethernet ports and dual HDMI plus VGA outputs. It brings order to sprawling installations where scattered recorders would be hard to manage.

Key Features

• 64-Channel Capacity: Sixty-four camera inputs let one recorder serve a whole campus, plant or multi-building site, removing the fragmented mix of small recorders. Operators manage every camera from one console, which simplifies configuration, review and support. Channel licensing keeps expansion orderly as coverage grows. The recorder decodes up to 12 MP cameras natively, so high-resolution models are not downscaled.

• Four Hard-Drive Bays: Four bays provide substantial storage for long retention across many streams, keeping weeks of footage on site. With hot-swap support, drives are replaced without pausing recording. That resilience suits sites where downtime is unacceptable. Four hot-swap hard-drive bays support RAID 0 and RAID 1 for capacity or redundancy.

• Up to 12 MP Decoding: Native 12 MP support means high-resolution cameras are recorded and displayed without downscaling, so wide-area detail is preserved. It future-proofs the head-end as newer cameras are added. Local operators see full-quality images on the monitors. A 320 Mbps incoming bandwidth budget feeds 64 cameras at useful bitrates using H.265+.

• 320 Mbps Incoming Bandwidth: A 320 Mbps ingest budget supports 64 cameras at sensible bitrates using H.265+, keeping quality high. The headroom absorbs alarm bursts and busy scenes without dropping frames. Sites avoid trimming bitrates just to fit channel counts. Dual HDMI and VGA outputs support separate live-wall and management displays in a control room.

• RAID 0 and RAID 1: Striping for capacity or mirroring for redundancy gives the site a clear choice. RAID 1 keeps recording alive if a disk fails, protecting evidence continuity. Disk health is monitored from the interface for proactive servicing.

• Dual HDMI and VGA: Two HDMI outputs plus VGA allow separate live and management displays across a control room, useful for shift teams. Playback and configuration stay independent of the live wall. That keeps monitoring uninterrupted during admin work.

• Dual Gigabit Ports: Two RJ45 ports support segmentation or failover, isolating camera traffic from management traffic for stronger security. A redundant link protects recording if a path fails. The design suits network-sensitive enterprise environments.

• Enterprise Management: The I-HPNVR platform offers central configuration, remote playback and ONVIF integration for mixed-brand estates, manageable across many recorders from one console. That keeps large deployments consistent without per-device site visits.

Applications

• University Campuses: One head-end covers teaching blocks, halls and grounds across a large estate, simplifying management for security teams.

• Industrial Complexes: Multiple production buildings and perimeter cameras recorded together for safety and process review.

• Airports and Transit: High channel counts suit sprawling terminals and depots where many cameras feed one recording core.

• Large Retail Estates: Multiple buildings and car parks managed from a single recorder with long retention.

• Government Campuses: Centralised, standards-based recording across many offices and public spaces for compliance.

• Hospital Groups: Broad campus coverage with RAID protection for long, auditable retention.

• Logistics Parks: Docks, yards and gatehouses across several buildings consolidated on one head-end.

• Utility Sites: Reliable recording of dispersed assets where downtime and footage loss are seriously disruptive.

Summary
In summary, the I-HPNVR464 delivers a 64-channel enterprise NVR that gives large estates a single resilient recording core - practical performance, straightforward operation and clear documentation in one unit.
