Raylogic MOD-2U
Raylogic MOD-2U
The Raylogic MOD‑2U is a 2‑channel universal configurable automation module in the GO by Raylogic line. It is designed for smart‑home / smart‑building use. Each of its two output channels can be individually configured (for dimming, switching, fan, or curtains/blinds) to suit different load types. It supports app, voice, and local controls, integrates with the GO Cloud, offers safety & diagnostics, and is housed in a plate‑type retrofit form factor.
Specification Table
| Parameter | Details |
|---|---|
| Product Type | 2‑channel universal configurable automation module (MOD‑2U) |
| Physical Form / Dimensions | “2 module backbox” plate; Width (Plate): ≈ 93 mm; Height (Plate): 90 mm; Module Depth: 42 mm standard |
| Number of Output Channels | 2 configurable circuits |
| Supported Output Load Types | • Dimming: LED lamps with leading‑edge dimmable drivers up to ≤ 60 W/VA per channel • Switching: Incandescent / LED / Halogen ≤ 100 W/VA per channel • Fans: Regular ceiling and wall fans ≤ 100 W/VA per channel • Curtains / Blinds: One motor per channel allowed, ≤ 150 W/VA per motor/channel |
| Networking / Connectivity | Wi‑Fi 802.11 b/g/n, secured with AES‑256; diagnostics like Wi‑Fi SSID strength; connection to GO Cloud via secure TLS 1.2; firmware updates over the air (OTA); support for third‑party control & large deployment via additional hub. |
| Protection / Safety | • Automatic frequency tracking • Output fuse for short circuit protection • Temperature monitoring & overheat warning • Enclosure: UL‑94V0 flame‑resistant polycarbonate material |
| Features | • Front panel on/off and optional dimming controls • Preset indicator LED brightness • Non‑volatile memory: stores scenes, schedules, timers, last state • Notifications: for loads left on beyond a defined duration or after a certain time |
| Control Methods | • Touch: direct via front panel touch switches • App: iOS & Android via the GO App • Scene Keypads: fixed multi‑way control via in‑wall GO Scene Keypads • Voice control: Alexa GO Voice Skill; Google Home GO Voice Action; IFTTT GO by Raylogic; Siri Shortcuts |

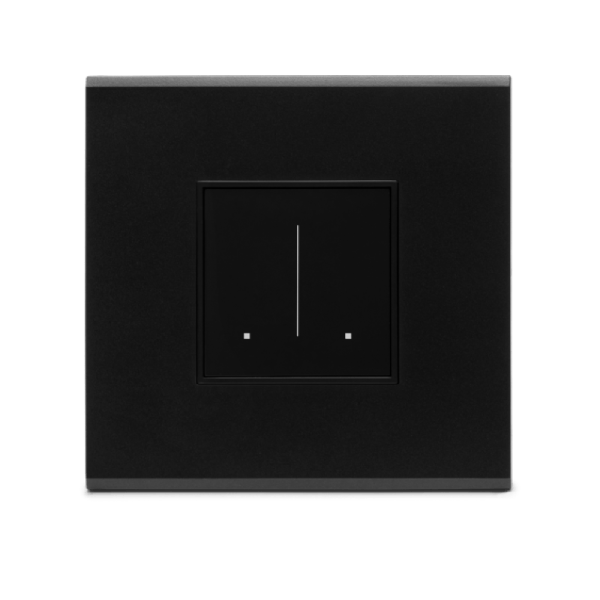

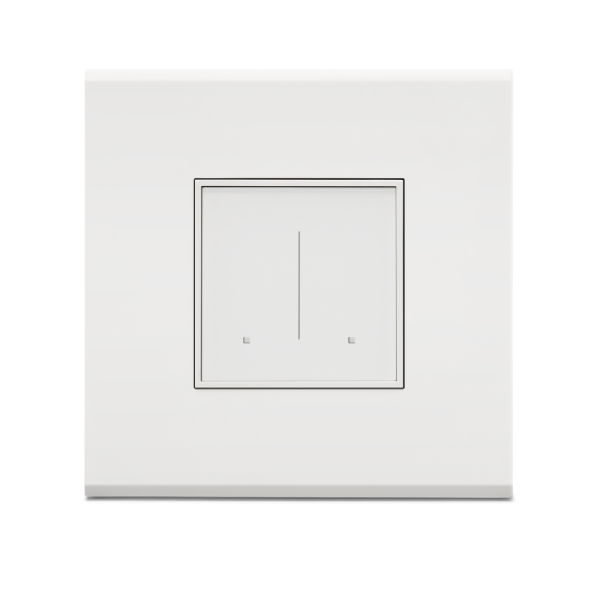

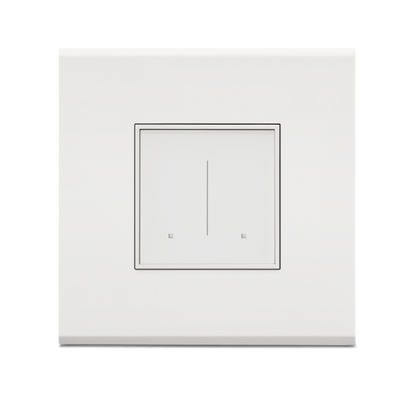

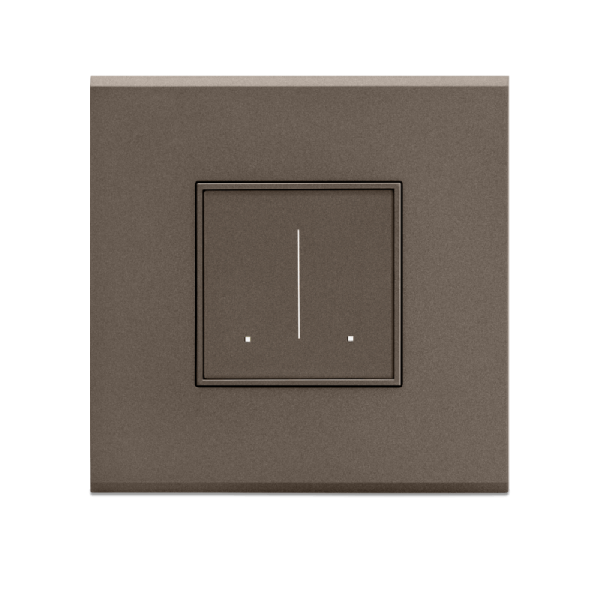

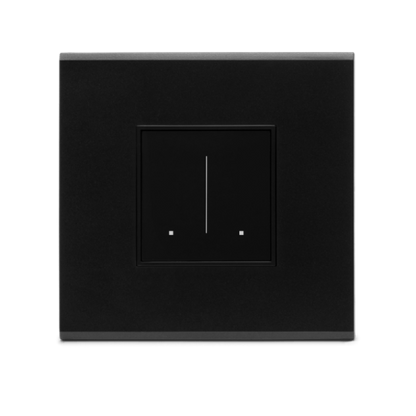

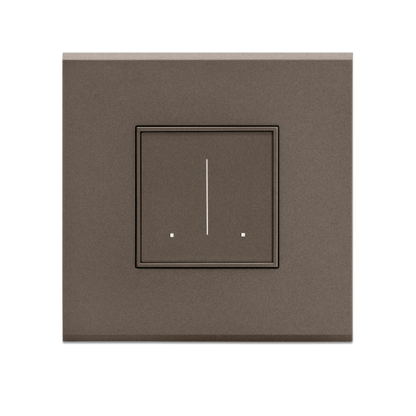

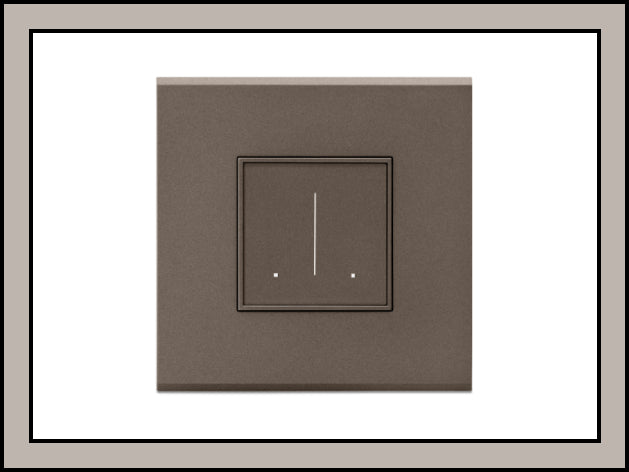

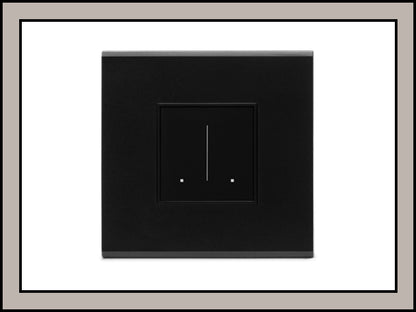

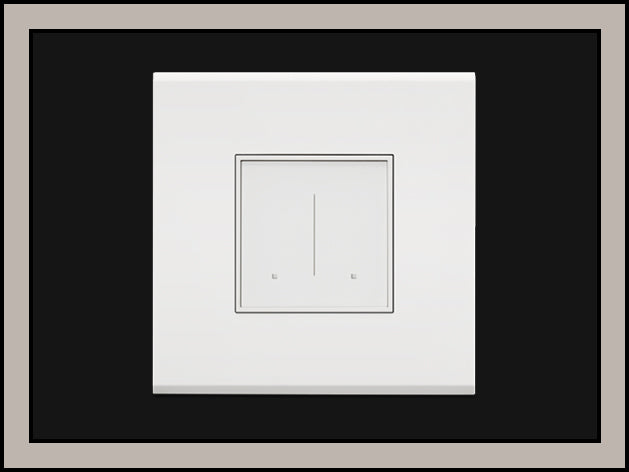

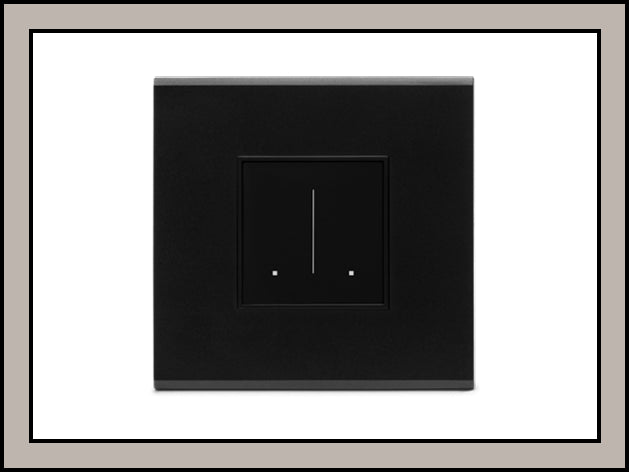

| Colour Options | White, Black, Brown, Grey (plate colours) |
Key Features
• Dual‑channel flexibility: Two separate circuits, each configurable to different load types, so you can have one channel, say for dimmable lights, the other for switching lights, or fans etc.
• Retrofit‑friendly form‑factor: Designed to fit existing backboxes (standard plate size) and look like a regular switch plate, so upgrading to smart control is easier without major rewiring.
• Multiple control modes: Physical touch switches, mobile app, voice assistants, scene keypads — gives you redundancy and ease of control.
• Smart scheduling & memory: Saves states (last on/off, brightness etc.), supports schedules and timers; retains them across power‑outage (non‑volatile memory).
• Safety and diagnostics: Protection against short circuits, overheating; diagnostic info like WiFi strength; warnings or notifications when loads are left on too long.
• Aesthetic / user‑friendly design: Plate colors, indicator LED brightness adjustment; the module is designed to integrate in interiors without being obtrusive.
Applications
Here are some typical use‑cases / environments where MOD‑2U would be a good fit:
• In homes: for controlling two lighting circuits in a room (e.g. ambient + accent lighting), or light + fan together.
• For curtain/blind automation along with lighting in a room.
• In retrofit projects, where replacing existing switches with smart control is desired without changing wiring.
• In small offices or commercial spaces: for dual controls in meeting rooms (lights + projector screen or blinds).
• For scenes/ambience: e.g. one channel dimmed, one turned off in “movie mode”, etc.
• Energy conservation: schedule lights/fans etc., and get notifications when something is left on.
Summary
The Raylogic MOD‑2U is a versatile and compact two‑channel automation module aimed at making spaces smarter without much fuss. It blends flexibility (multiple load types, dual circuits), safety (protection features, diagnostics), and ease of use (touch, app, voice) in a retrofit‑friendly form. It is especially suited for situations where only two circuits need to be controlled (as opposed to larger multi‑channel modules), making it cost‑efficient, simpler to install, and less complex to manage.
