Raylogic MOD-4U
Raylogic MOD-4U

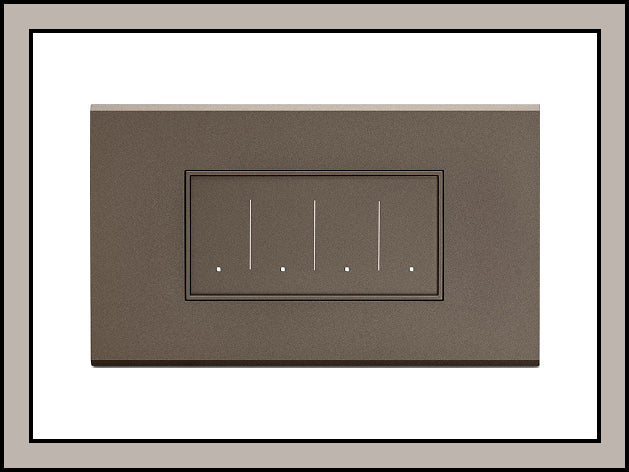

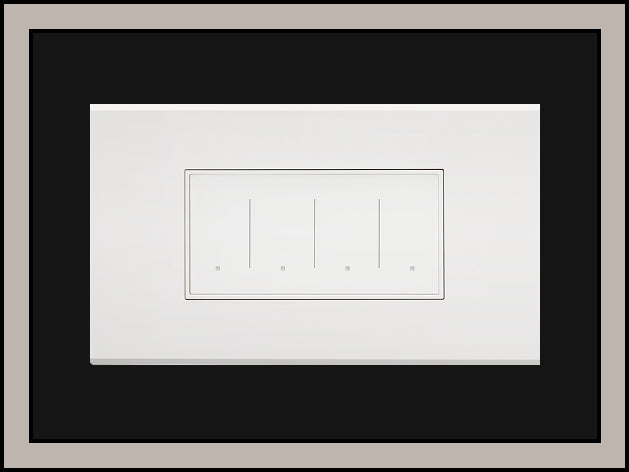

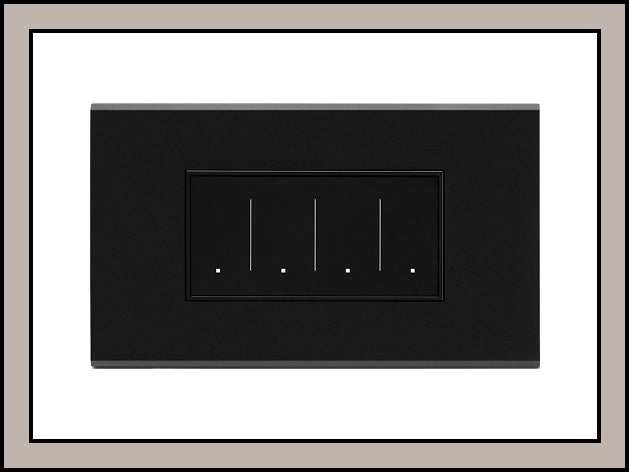

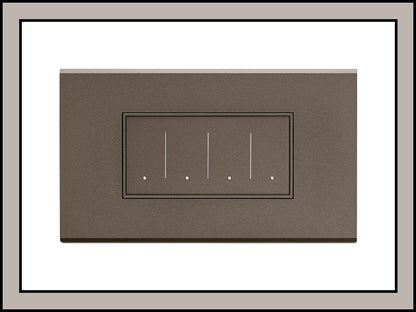

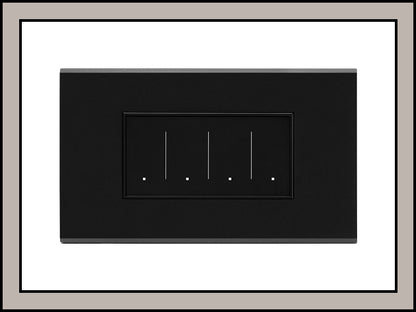

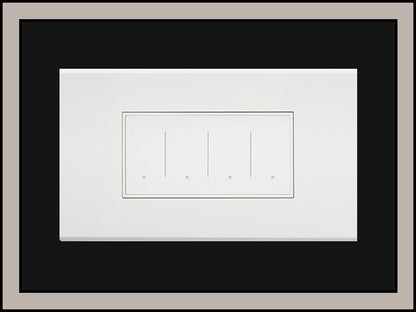

The Raylogic MOD‑4U is a 4‑channel universal configurable automation module in the GO by Raylogic product line. It’s designed for smart home/automation systems to control lighting, fans, curtains etc., with flexibility in output type (dimming, switching, etc.). It fits a back‑box plate (“4 module backbox”), has a front panel with touch/physical controls, plus app / voice / remote control via the GO platform. It supports retrofit (i.e. install into existing wiring or new installations) and offers protections and diagnostics.
Specification Table
| Parameter | Details |
|---|---|
| Product Type | 4‑channel universal configurable automation module (MOD‑4U) |
| Physical Size / Form Factor | 4 module backbox; plate width ~220 mm, height 90 mm, depth of module ~42 mm (standard) |
| Output Channels | 4 configurable circuits |
| Output Load Types & Ratings | • Dimming: LED lamps with leading‑edge dimmable drivers, up to 60 W/VA per channel • Switching: Incandescent / LED / Halogen lights up to 100 W/VA per channel • Fans: Regular ceiling/wall fans up to 100 W/VA per channel • Curtains / Blinds: One motor per channel up to 150 W/VA per channel |
| Networking / Connectivity | Wi-Fi 802.11 b/g/n with AES‑256 security; TLS 1.2 cloud access via GO cloud; firmware updates via OTA; diagnostics like Wi-Fi strength; third‑party control and for large deployments via hub. |
| Control Interfaces | Front panel on/off and optional dimming; control via GO mobile app (iOS/Android); voice control (Alexa, Google Home, etc.); possibly via keypads and scenes/timers. |
| Memory / Scenes / Schedules | Non‑volatile memory to store last states / scenes & schedules / timers etc. |
| Protection & Safety Features | • Automatic frequency tracking; • Output fuse for short circuit protection; • Temperature monitoring and overheat warning; • Enclosure: flame‑resistant material (polycarbonate), UL‑94 V‑0 rating. |
| Indicator / Visual Feedback | Preset indicator LED brightness; probably LEDs for switch states etc. |
| Power Supply / Enclosure Finish | Standard depth; finish subject to plate finishing; enclosure suitable for typical electrical / environmental conditions in India. |
Key Features
• Four‑channel flexibility: Each of the 4 channels can be configured individually (dimming, switching, fan, or curtain) per the requirement.
• Retrofit‑friendly: Designed so that it can be installed into existing wiring / switch boxes, making upgrades easier.
• App + Voice + Local Control: Aside from physical front‑panel control, you get full control via the GO app, voice assistants (Alexa, Google Home), schedules, scenes etc.
• Smart Memory & Safety: Retains last states and scheduled scenes even after power loss (non‑volatile memory). Offers protections like overheat / fuse / automatic frequency tracking.
• Aesthetic Integration: The product is designed with finish/plate aesthetic in mind, matching switch/sockets for seamless interior design.
Applications
Here are some use‑cases / environments where the MOD‑4U is especially useful:
• Home lighting control: controlling multiple lighting circuits in living room, bedrooms, etc. Especially where dimming is required.
• Fan control: ceiling fans or wall fans integrated into same control module for unified smart control.
• Curtain / motorised blinds: 1 motor per channel, for curtain or blind automation.
• Retrofit smart home upgrades: replacing standard switches with smart control without redoing wiring.
• Scenes & ambience: creating preset lighting scenarios (e.g. cinema mode, dinner mode) via app or voice.
• Energy saving / automation: scheduling lights/fans to turn off, notifications for loads left ON etc.
Summary
The Raylogic MOD‑4U is a versatile 4‑channel smart automation module meant for use in modern smart homes or spaces. It supports varied load types (lights, fans, motors for curtains), offers multiple control methods (physical, app, voice), is retrofit‑friendly, and comes with safety & diagnostic features. It’s especially suited for settings where some circuits need dimming and some discrete switching, or mixed types (fans, curtains, etc.), in a compact multi‑channel module. For users wanting centralized yet flexible control, it provides good value.
