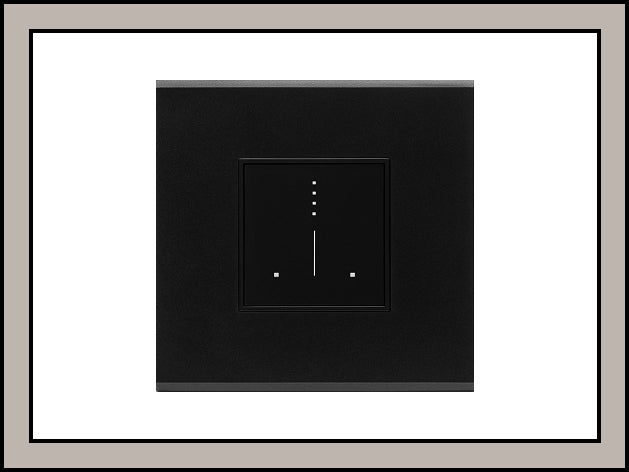

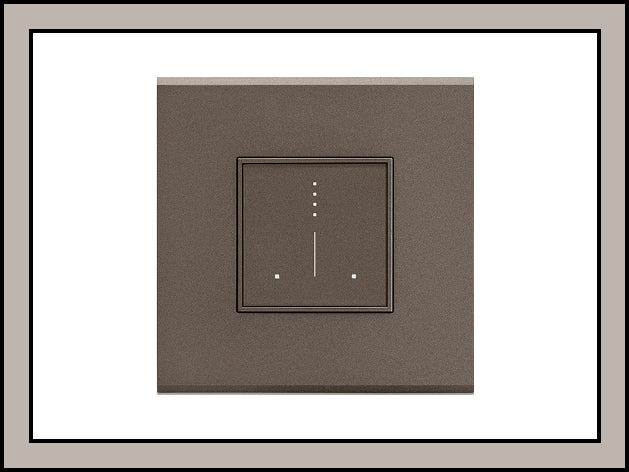

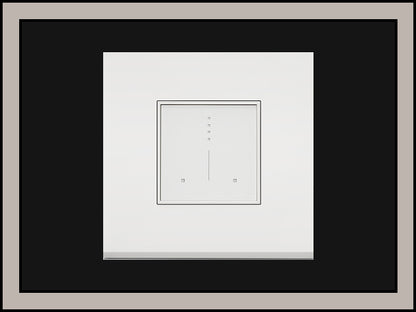

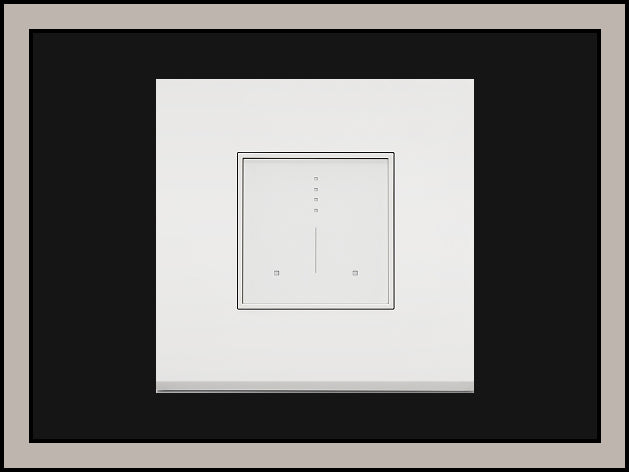

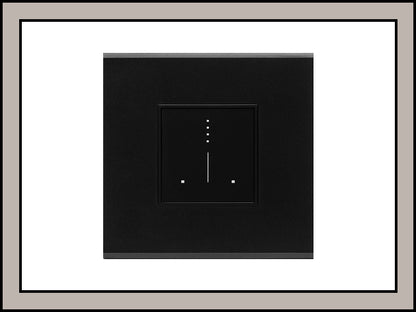

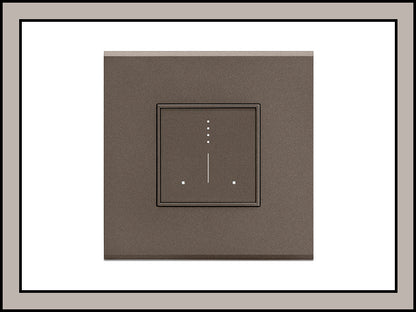

The Raylogic MOD‑ F is a single‑channel fan control module designed to replace a conventional fan control switch. It allows hum‑free speed control of a ceiling or wall fan with more features: touch control, scheduling, app/voice integration, etc. It is intended for retrofit into existing switch boxes (standard two‑module width), offering smart home control functions in addition to manual control.
Specification Table
| Parameter |
Details |
| Product Type |
Single‑channel fan control module (MOD‑ F) |
| Output Channels |
1 circuit for fan control |
| Load Type & Capacity |
Regular ceiling/wall fans ≤ 150 W/VA |
| Dimensions |
2‑module backbox; Width ~ 93 mm, Height ~ 90 mm, Depth ~ 42 mm standard, subject to plate finish |
| Networking / Connectivity |
Wi‑Fi 802.11 b/g/n, AES‑256 secured; diagnostics (Wi‑Fi SSID strength); access via GO Cloud using secure TLS 1.2; firmware updates OTA; third‑party control / large deployment via hub.
|
| Protection & Safety |
Output fuse for short circuit protection; temperature monitoring and overheat warning; internal resettable thermal fuse for fan loads; UL‑94V0 flame‑resistant polycarbonate enclosure. |
| Control Methods |
Touch panel (front‑panel touch switches); App (iOS & Android via GO app); Scene Keypads (fixed multi‑way via in‑wall Keypads); Voice control (Alexa, Google Home, etc.). |
| Additional Features |
5‑step direct fan speed control; indicator LEDs for fan speed; pre‑settable indicator LED brightness; notifications for fans left ON beyond certain times; built‑in real‑time clock for scene scheduling. |
Key Features
• Single‑channel fan‑specific control: Designed specifically for fan loads — cleaner control, hum‑free (electronic speed stepping rather than crude voltage drop).
• Multi‑modal control: manual touch controls + app + voice + keypad – gives flexibility for different users.
• Scheduling and automation: has real‐time clock, supports scenes, and sends notifications if fan is left running for too long. Useful for energy management.
• Safety features: thermal fuse, overheat monitoring, short‑circuit protection. Enclosure flame‑resistant.
• Aesthetic & retrofit design: fits standard backbox; plate finish options; indicator LED brightness adjustable.
Applications
• Replacing a conventional fan control switch in houses / apartments, to convert into a smart fan control.
• Rooms where fan speed control is desirable via schedule or remote (bedrooms, living rooms).
• Integration into smart home system for comfort & energy savings (e.g. turning off fan after a timer).
• Use with voice assistants or smart keypads.
• Scenarios where a fan might be left on unnecessarily, enabling notifications or automations to switch off.
Summary
If “MOD‑F” is intended to be MOD‑ F (or similar single‑channel fan control from Raylogic), then the module is a smart, dedicated fan module with clean speed stepping, multiple control modes, scheduling, safety protections, and retrofit design. It offers more refined control over a fan vs a simple on/off switch, reduces nuisance factors like humming, and integrates with the broader Raylogic GO/home automation ecosystem
