Raylogic SCN 6
Raylogic SCN 6

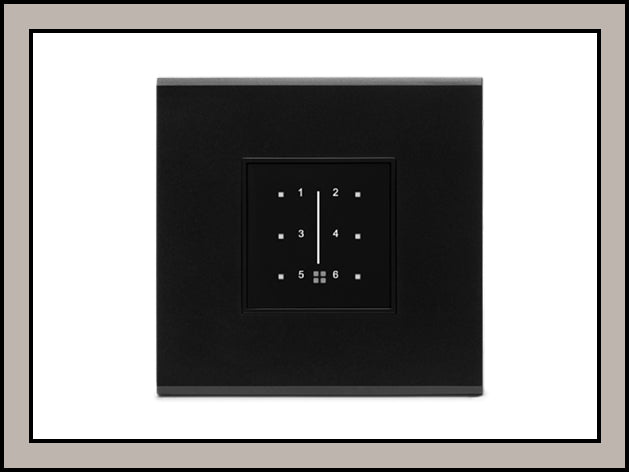

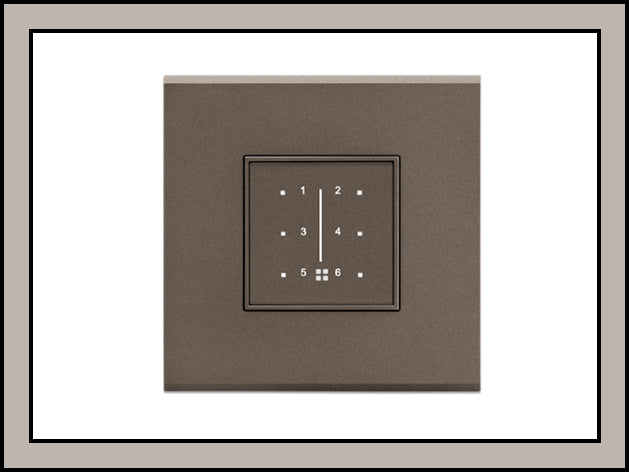

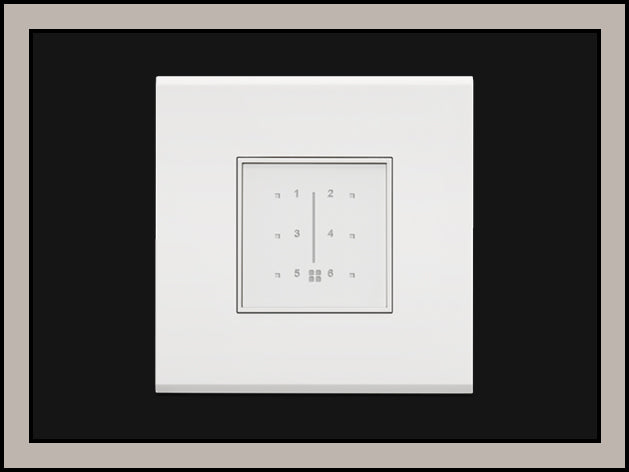

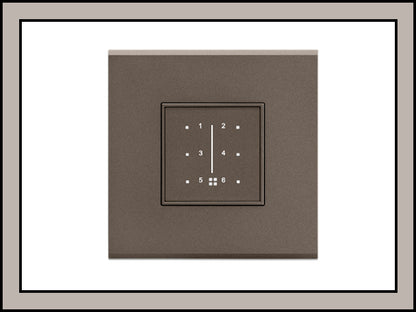

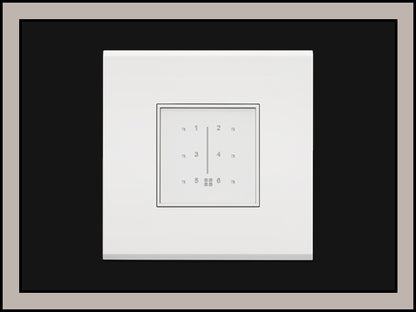

The Raylogic SCN‑6 is a scene‑selector keypad/module in the GO by Raylogic ecosystem. It allows users to recall up to six preconfigured “scenes” (lighting/fan/load states etc.), timers, or sequences. It is designed for mounting in a standard 2‑module backbox, with a front‑panel touch interface. The module integrates with the Raylogic GO Cloud / app / voice ecosystem to allow remote control, scheduling, and status indication, in addition to manual control via the front panel. It can be used in multi‑way locations (e.g. entrance, bedside, multiple control points for the same scene), and retains memory of its last state after power outage.
Specification Table
| Parameter | Details |
|---|---|
| Product Type | Scene selector module (SCN‑6) |
| Number of Scenes / Buttons | Up to 6 configurable scenes / sequences / timers |
| Physical Form / Dimensions | 2‑module backbox; Plate width approx 93 mm; Height 90 mm; Module depth ~42 mm standard; finish depends on plate design. |
| Networking / Connectivity | Wi‑Fi 802.11 b/g/n; AES‑256 security; diagnostics including Wi‑Fi SSID strength; GO Cloud access via secure TLS 1.2; firmware updates over the air (OTA); ability to integrate with third‑party control via hubs. |
| Memory / State Retention | Non‑volatile memory for scenes, schedules, timers, and storing last state even after power loss. |
| Indicators / LEDs | Pre‑settable LED brightness indicators for the scene buttons / front panel. Also shows current status of scenes. |
| Control Methods | • Front panel touch switches for selecting scenes; • App control via GO app (iOS, Android); • Voice control (Alexa, Google Home, etc.); • Possibly multi‑way control (i.e. multiple SCN‑6 or keypads controlling same scenes from different locations) |
| Protection / Other Features | Basic set expected: since it is low‑power control unit, typically electronic safety, but specifics not detailed in public spec beyond Wi‑Fi security & OTA firmware. Depth and build per plate finish etc. |
Key Features
• Six independent scene selectors: Up to six preprogrammed scenes/sequences/timers can be stored and recalled via the SCN‑6. Useful for controlling lighting ambience, mood scenes, or pre‑set combinations of loads.
• Multi‑way control: Enables control of the same scenes from multiple locations (e.g. bedside + entrance), so you don’t need to be at one switch to change a scene.
• Manual + App + Voice: You can control scenes manually from the front touch buttons, or remotely / programmatically via the GO app; also integration with voice assistants.
• Status indication / LED feedback: The SCN‑6 shows which scene is active or on via LED indicators; LED brightness is adjustable.
• Memory & persistence: Scenes, timers, schedules, and last states are stored in non‑volatile memory so they persist through power interruptions.
• Secure connectivity: Use of Wi‑Fi with AES‑256, diagnostics, cloud via TLS, OTA updates. Helps with maintaining security and reliability.
Applications
Here are some typical use‑cases and scenarios where SCN‑6 is helpful:
• In living rooms, bedrooms or lounge areas to easily switch between different moods (e.g. Cinema, Reading, Dinner, Night, etc.) with a single touch.
• Hotels / guest houses: a single scene‑selector for guests to choose predefined lighting environments (e.g. Wake‑up, Sleep, Do Not Disturb, etc.).
• Banquet halls / event spaces, conference rooms: scene control for different setups (Projector on/off, mood lighting, spotlight, general lighting etc.).
• Multifunction spaces (home theater + living + dining) where different scenes are required depending on use.
• Multi‑entry rooms or corridors: having SCN‑6 at different access points to recall same scene as one enters / exits.
• In retrofit installations where wiring for multiple load‑type controls is complex; using scenes simplifies user interface.
Summary
The Raylogic SCN‑6 is a smart scene‑selector keypad module that enhances the usability of lighting / load control systems by allowing up to six predefined scenes or sequences to be stored and recalled. It offers flexible control options (touch, app, voice), robust memory retention, and multi‑way capability so control can be distributed. It is built to fit standard electrical footprints (2‑module backbox), with aesthetic LED indicators and adjustable brightness. Ideal where ambience, scene setting or simplified control of multiple loads is needed, rather than controlling each load individually all the time.
